Product Description
The Ultrasonic Thickness Gauge AT-140 series include two model; Using the latest high performance and low power consumption micro processing technology,applicable to measure the thickness of metal and other materials base on the ultrasonic operating principle.
Product Feature
* Coupling state prompt functions.
* Automatic shutdown and manual shutdown function.
* Automatic memory material code and sound velocity value, convenient use.
* Use USB data output with connection PC
* Provide Bluetooth data output choice.
Product Parameters
| Resolution | AT-140A: MPE:+(0.1+H/100)mm
|
AT-140B: MPE:(0.01+H/200)mm
|
| Range | AT-140A: 1.2~200mm (45# steel )
|
AT-140B: 1.2~300mm (45# steel )
|
Accuracy
| ±(0.5%n+0.1) |
| Sound velocity | 500~9000m/s
|
| Operating condition | Temp. 0~50
|
Humidity: <80%)
|
Display unit
| millimeters and inches
|
Size
| 140x70x30 mm
|
| Power Supply | 4x1.5vAAA (UM-4)Battery
|
Weight
| 130g (Not including batteries)
|

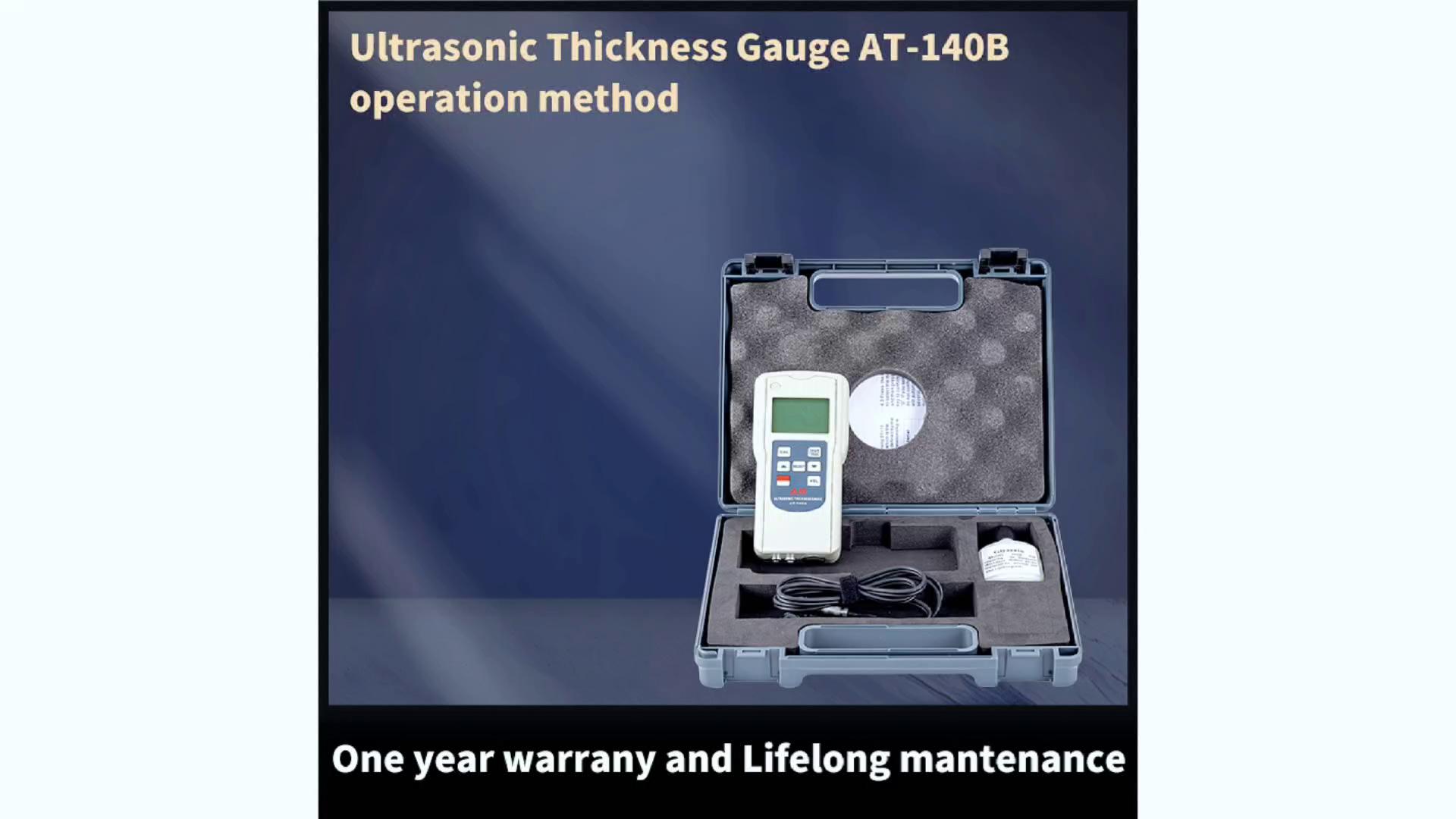

Product Accessories
Standard Accessories
| Main Unit |
| 5MФ8 Standard Sensor |
Coupling Agent
|
Carrying Case
|
Operation Manual
|
Optional Accessories
| USB data output |
Bluetooth data output
|
Sensor Technical Parameters:
Probe Model | Characteristics | Measuring Range ( mm ) | Diameter | Frequency | Operating Temperature |
5MHz Φ8 | Standard Configure Probe ( UTG-ST ) | 1.5 ~ 200 ( Steel ) | Φ 8 mm | 5M Hz | Normal Temperature ( 0 ~ 50 °C ) |
| 5MHz Φ6 | Measurement of Workpiece in Small Diameter | 1.2 ~ 100 ( Steel ) | Φ 6 mm | 5M Hz | Normal Temperature ( 0 ~ 50 °C ) |
5MHz Φ12 | High Temperature Measurement ( UTG-HT ) | 3.0 ~ 200 ( Steel ) | Φ 12 mm | 5M Hz | Normal Temperature ( 0 ~ 300 °C ) |
2MHz Φ10 | Measurement | Plastic | 1.0 ~ 50 | Φ 10 mm | 2M Hz | Normal Temperature ( 0 ~ 50 °C ) |
| Cast Iron | 3.0 ~ 40 |
catalog
manual：a
manual：b
Buying Guide
When you choose the model number of Amittari instrument, the default is standard delivery. If you need other optional accessories, please tell our customer -service worker.
The following three items are basic optional accessories choices
Standard Accessories+USB data output
Standard Accessories+Bluetooth data output
Bluetooth Accessories
Amittari instruments generally can be supplied with Bluetooth data output function ( except few instruments ) . As Bluetooth data output is included in optional accessories, not standard delivery,it needs to be indicated when choose 10 meters to 100 meters distance can be chosen.Please kindly contact with the customer-service worker if you need Bluetooth data output.
