Product Description

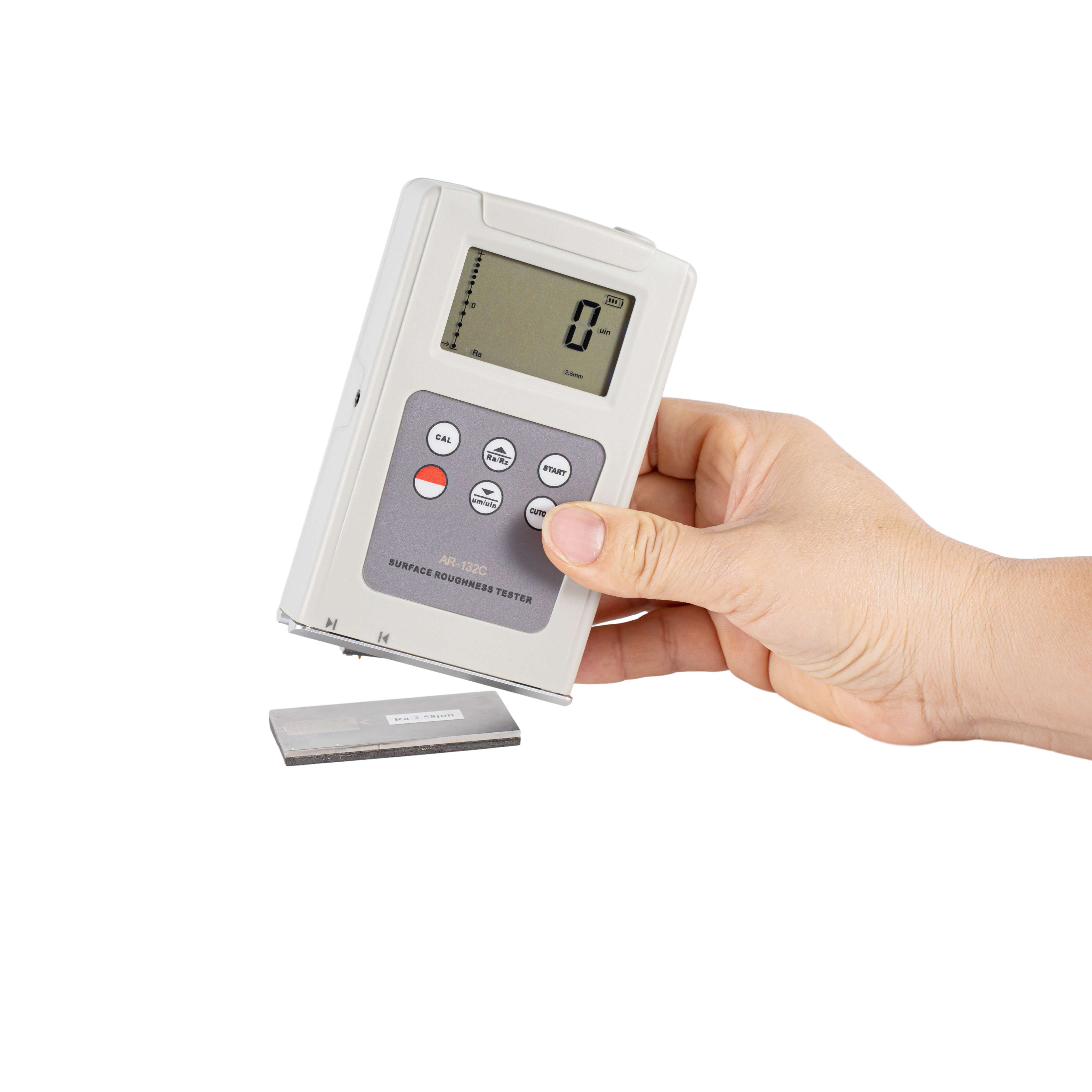

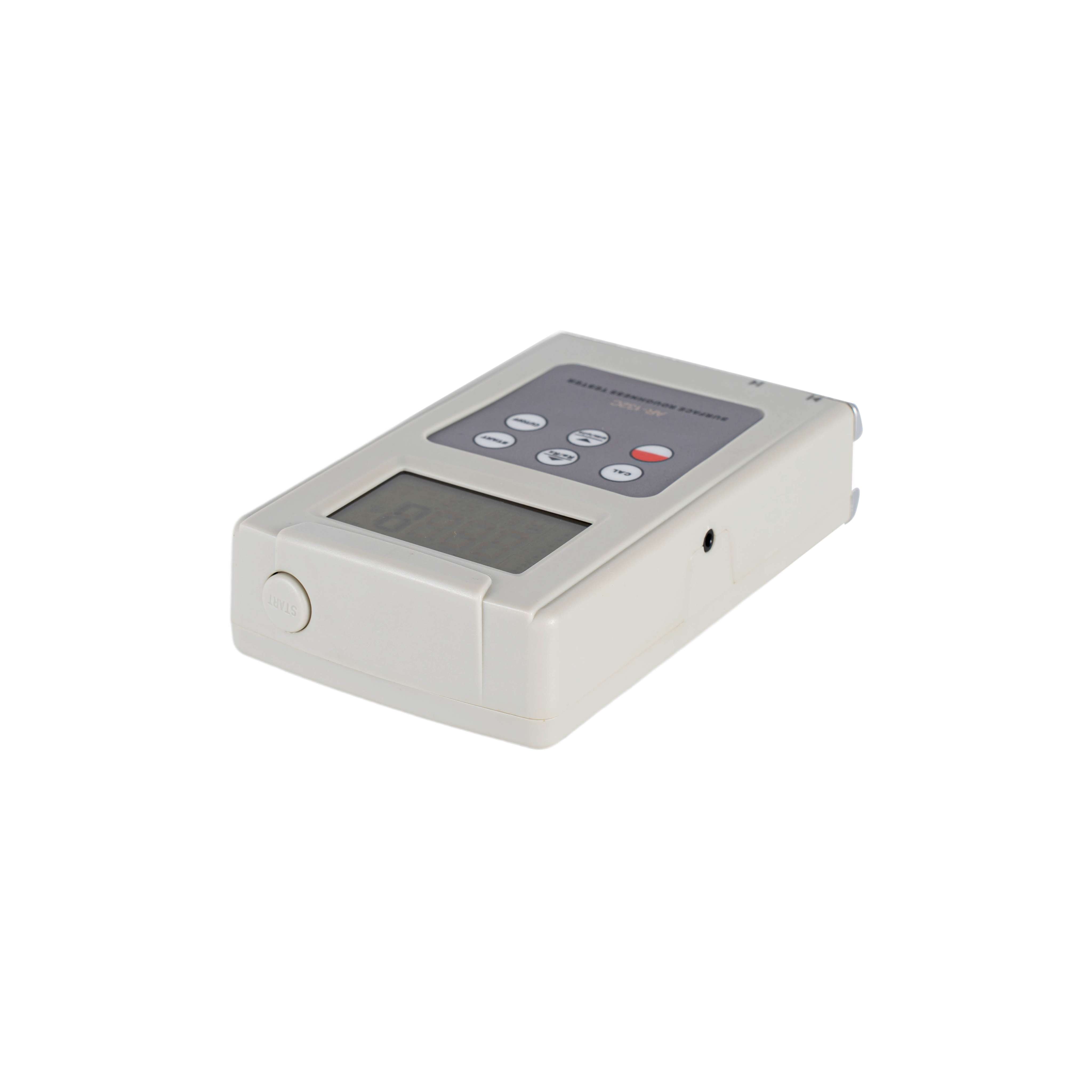

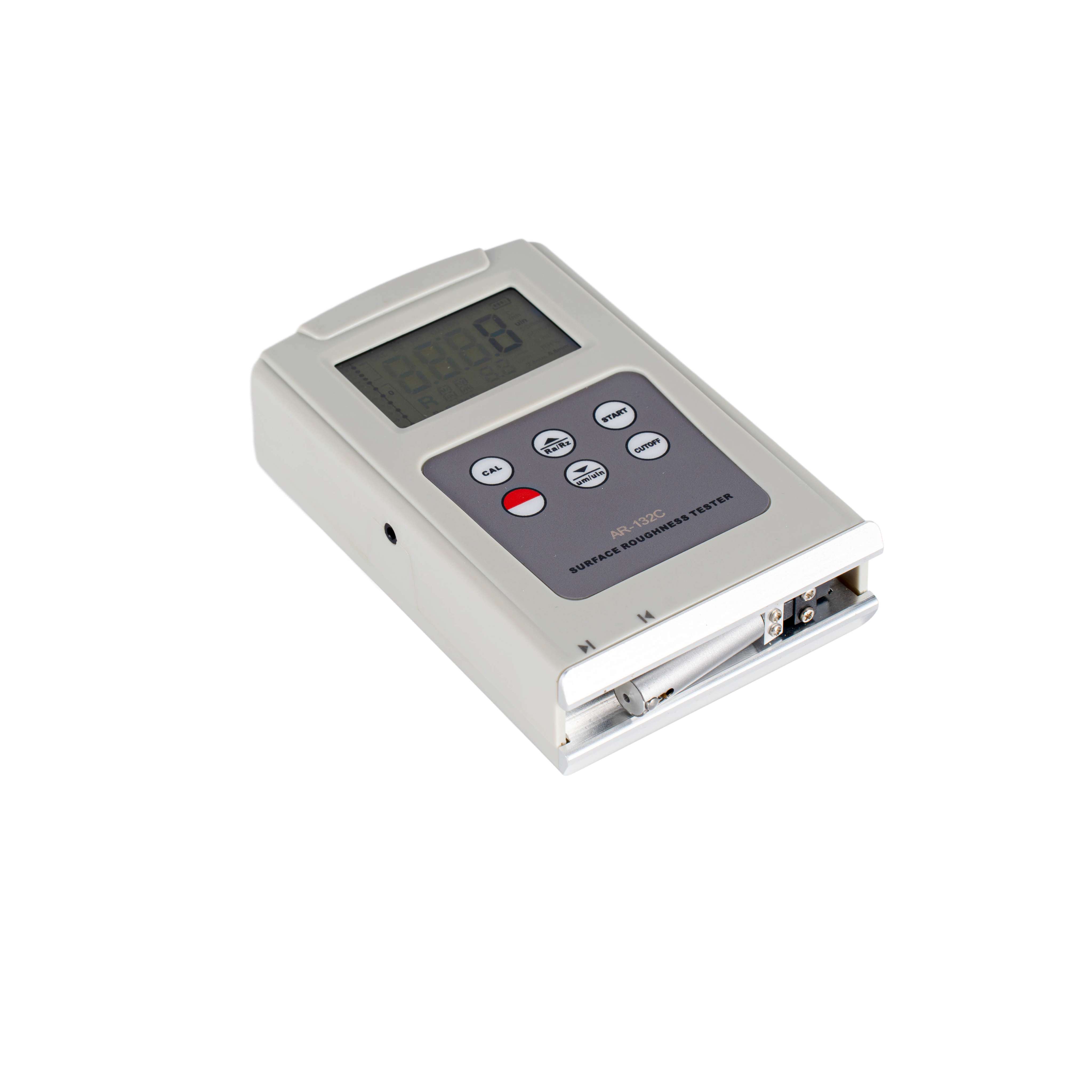

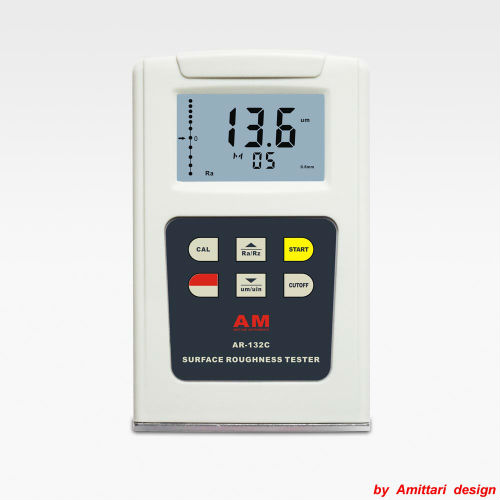

The Surface Roughness Tester adopt Computer technology, compatible with four standards of ISO, DIN, and JIS. Widely used in production site to measure surface roughness of various machinery-processed .
Product Feature
* High accuracy inductance sensor.
* Multiple parameter measurement: Ra, Rz.
* With low power consumption indication.
* Can be measured in several parts of the surface roughness:Planar, curved surface, small hole,slot of the irregular surface.
* Design of electromechanical integration, small volume, light weight, convenient with measuring value storage function and data storage query.
* Use DSP chip control and data processing, high speed, low power consumption LCD digital display with backlight function.
* Use USB data output with connection PC.
* Provide Bluetooth data output choice.
Product Parameters
Measuring Range | Ra: 0.05-10.00um/1.000-400.0uinch
|
Rz: 0.020-100.0um/0.780-4000uinch
|
| Accuracy | ±15% |
| Fluctuation of display value | 10% |
| Resolution | 0.001μm, 0.01μm, 0.1μm
|
| Probe | Radius
| 10μm |
Material
| Diamond |
Measurement Force
| 16mN(1.6gf) |
Angle
| 90°
|
Vertical Radius
| 48mm
|
Maximum Driving Stroke
| 12.5mm/0.5inch
|
Cutoff Length
| 0.25mm, 0.8mm, 2.5mm
|
Driving Speed |
Measuring | Sampling Length: 0.25mm Vt: 0.135mm/s
|
Sampling Length: 0.8mm Vt: 0.5mm/s
|
Sampling Length: 2.5mm Vt: 1mm/s
|
Returning
| Vt=1mm/s
|
| Evaluation length | 1~2L cut off optional (0.25mm sampling length =1L)
|

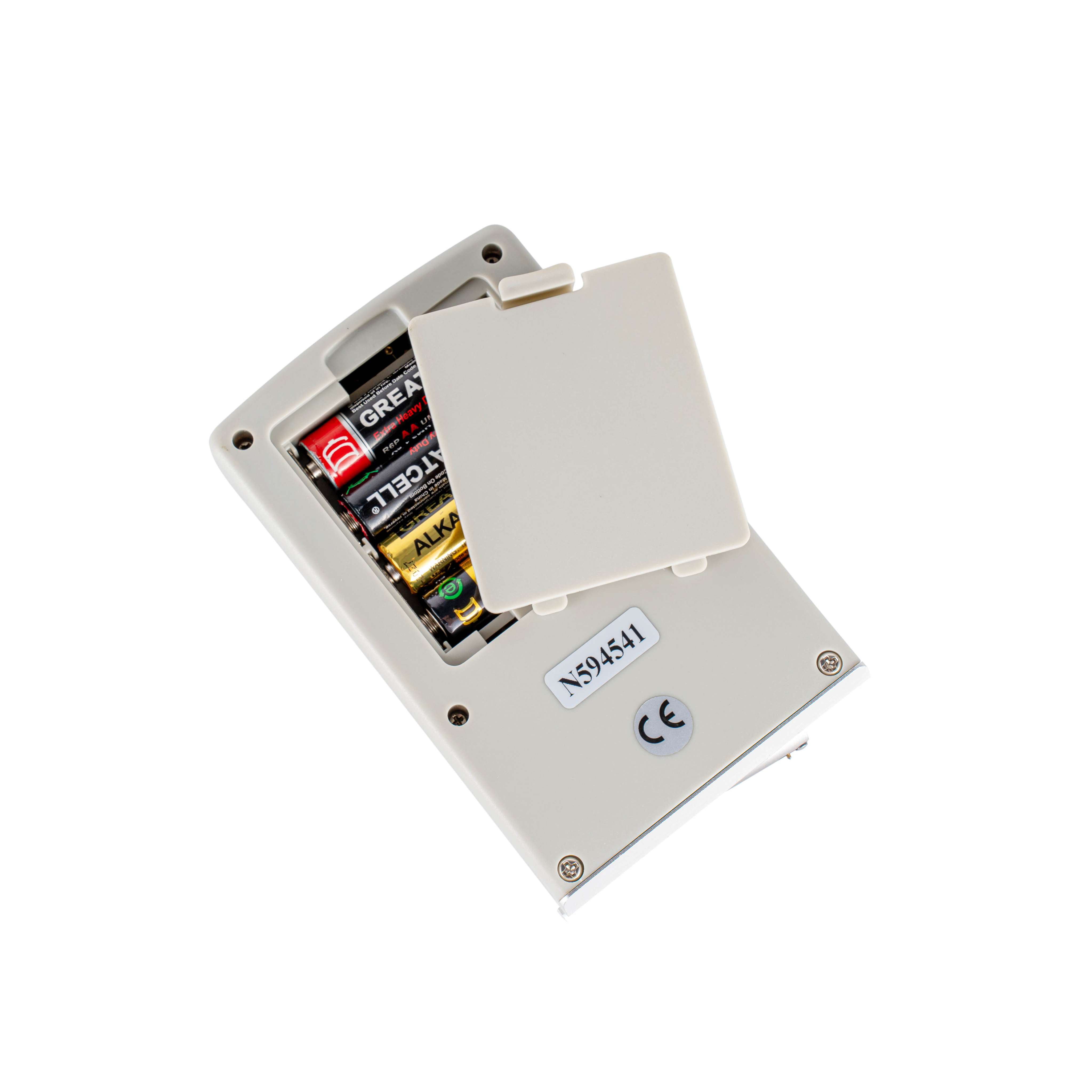

| Power Supply | 4x1.5vAA Um-3 Battery
|
| Size | 140x75x33 mm
|
| Weight | 280 g (Not including batteries)
|
Product Accessories
Standard Accessories
| Main Unit |
Small Screwdriver
|

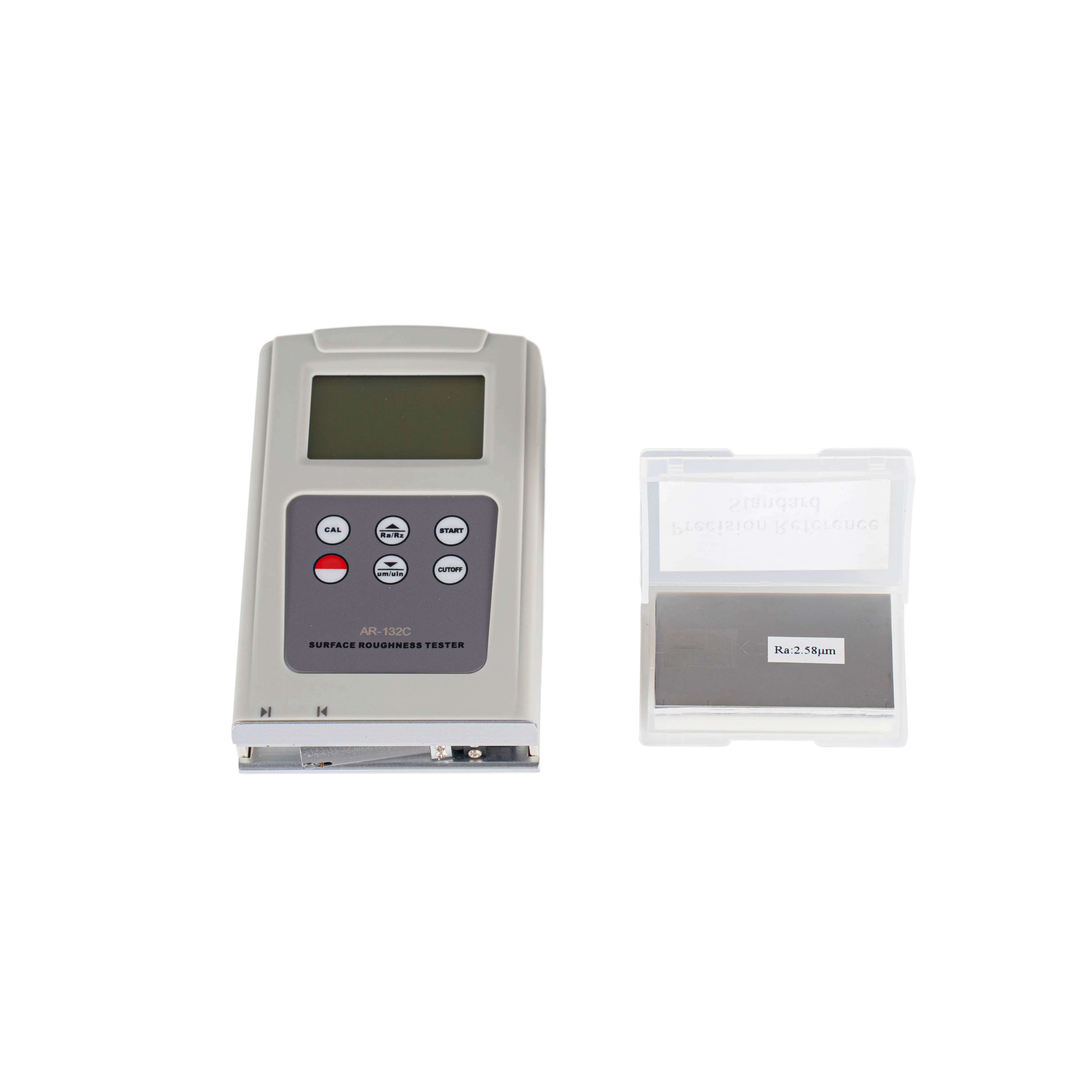

Standard Boilerplate
|
Standard Sensors,
|
Carrying Case
|
Operation Manual
|
Optional Accessories | USB data output
|
RS-232 data output
|
Bluetooth™ data output
|
Buying Guide
When you choose the model number of Amittari instrument, the default is standard delivery. If you need other optional accessories, please tell our customer -service worker.
The following three items are basic optional accessories choices
Standard Accessories+USB data output
Standard Accessories+Bluetooth data output
Bluetooth Accessories
Amittari instruments generally can be supplied with Bluetooth data output function ( except few instruments ) . As Bluetooth data output is included in optional accessories, not standard delivery, it needs to be indicated when choose 10 meters to 100 meters distance can be chosen. Please kindly contact with the customer-service worker if you need Bluetooth data output.
