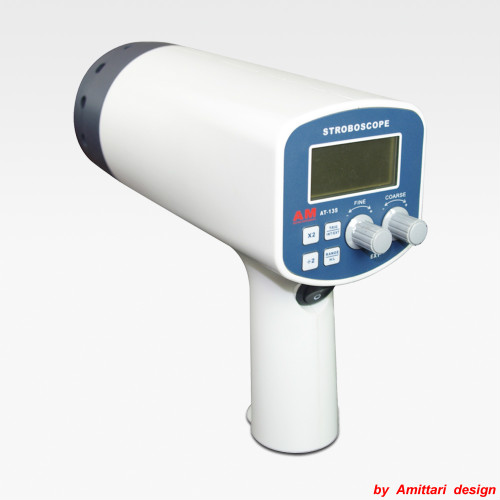

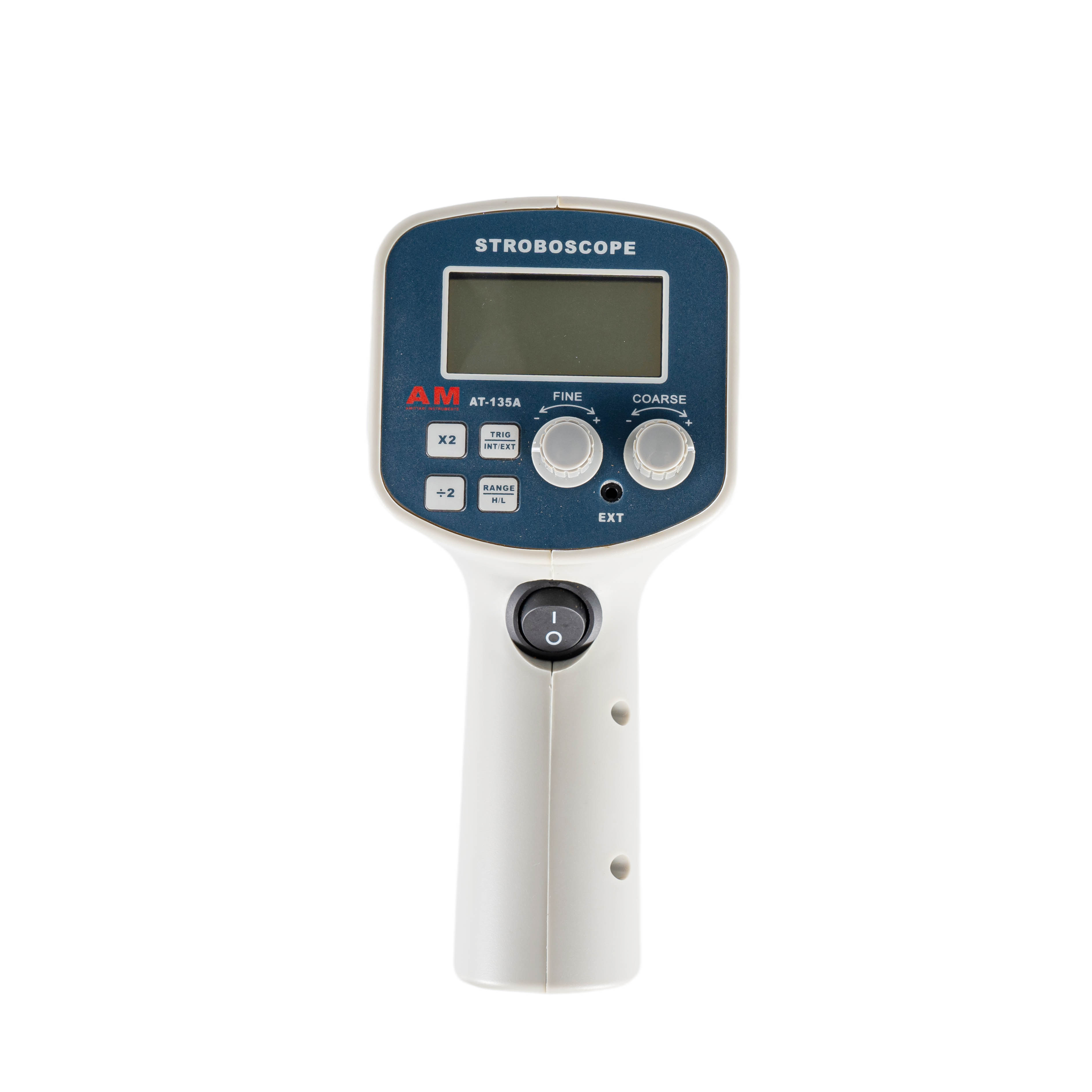

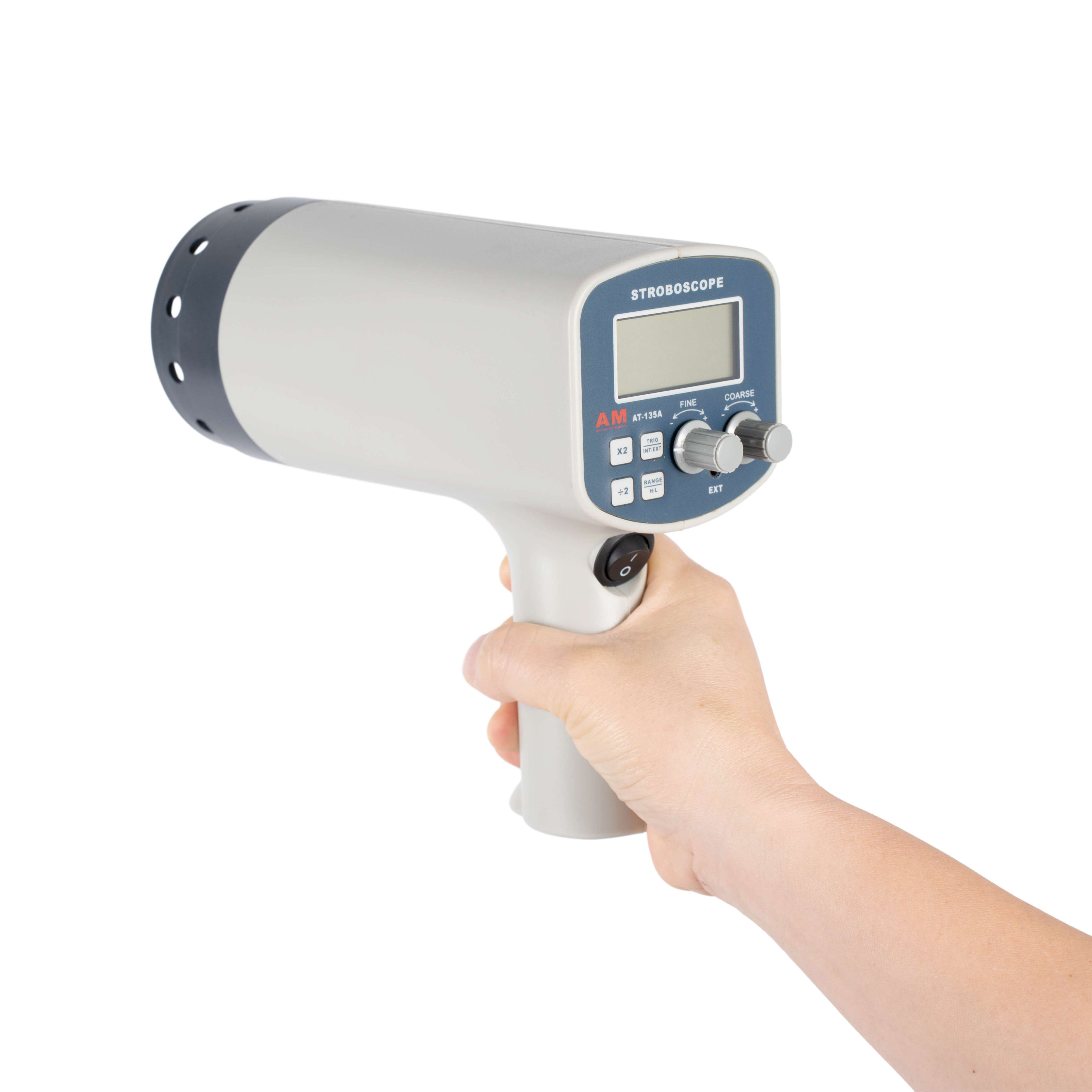

Product Description
The Stroboscope include AT-135A and AT-135B two model. Use photoelectric signal while external triggering, achieve automatic tracking function of the pattern, Use microcomputer technology, emerging technologies, anti-jamming technique and other advanced technology, it can measure the rotative velocity without contacting the object .
Product Feature
* Automatic stop flashing to save electricity and improve flash tube lifetime.
* Internal/external triggering fast conversion, x2 and ÷2 button for fast adjustment.
* Use photoelectric signal while external triggering, achieve automatic tracking function of the pattern.
* Digital display gives exact reading with no guessing or errors; Wide measuring range and high resolution.
* Use microcomputer technology, emerging technologies, anti-jamming technique and other advanced technology, it can measure the rotative velocity without contacting the object.
Product Parameters
Resolution
| 0.1FPM ( Below 1000 FPM ) |
1FPM ( Above 1000 FPM )
|
Measuring Range
| AT-135A: 50~12000FPM
|
| AT-135B: 50~40000FPM |
| Measuring Accuracy | ± ( 0.05%+1nd ) |
Sampling Time
| 0.3 seconds |
| Triggering Mode | Internal Triggering / External Triggering |
Relative Humidity
| ＜85% ( RH )
|
Power Supply
| AC 220 ±10%v, 2A, 50Hz / Ac110 ±10%v, 2A,50Hz
|
Size
| 210x85x185 mm |
Wight
| 660g |

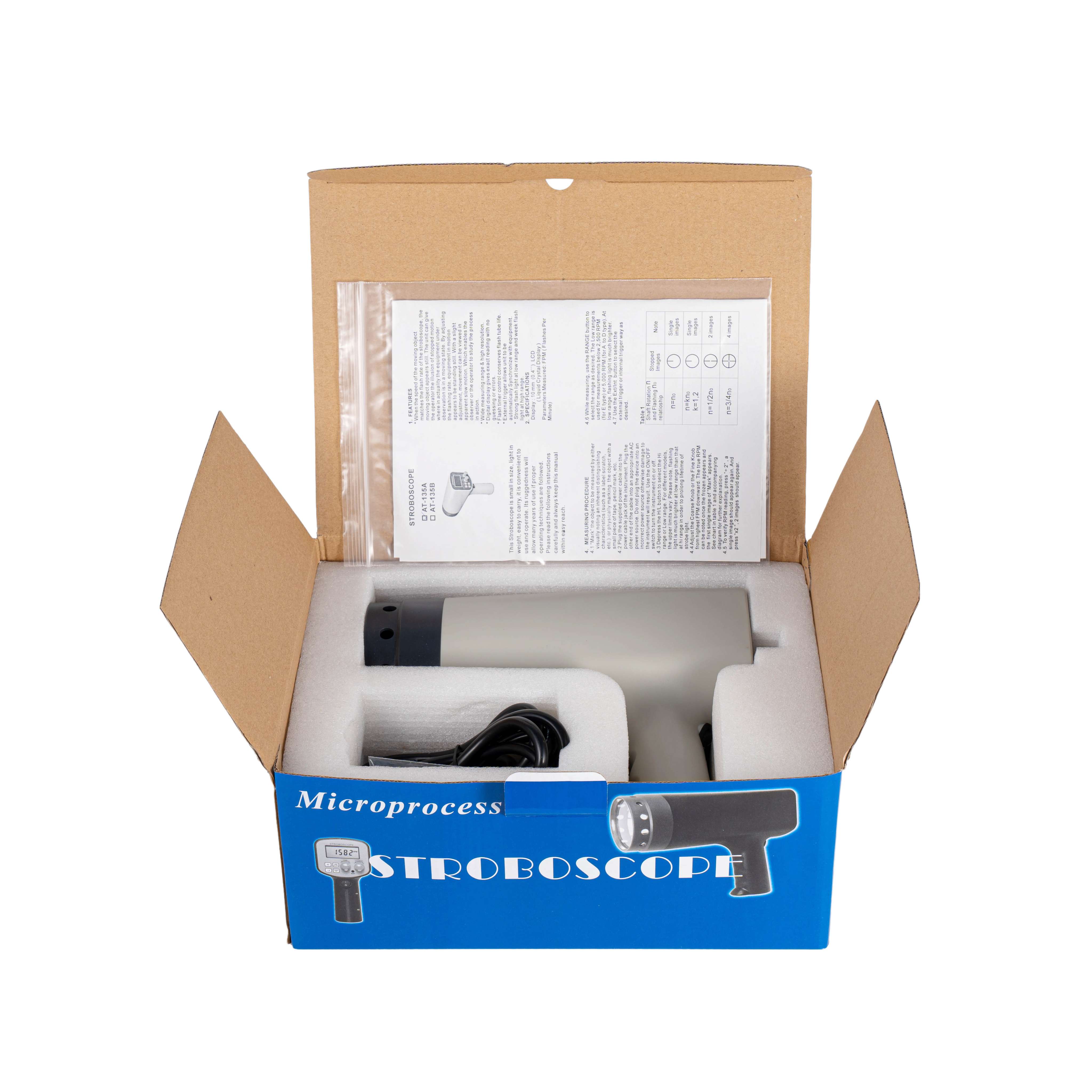

Product Accessories
Standard Accessories
| Main Unit
|
Carrying Case
|
Operation Manual
|

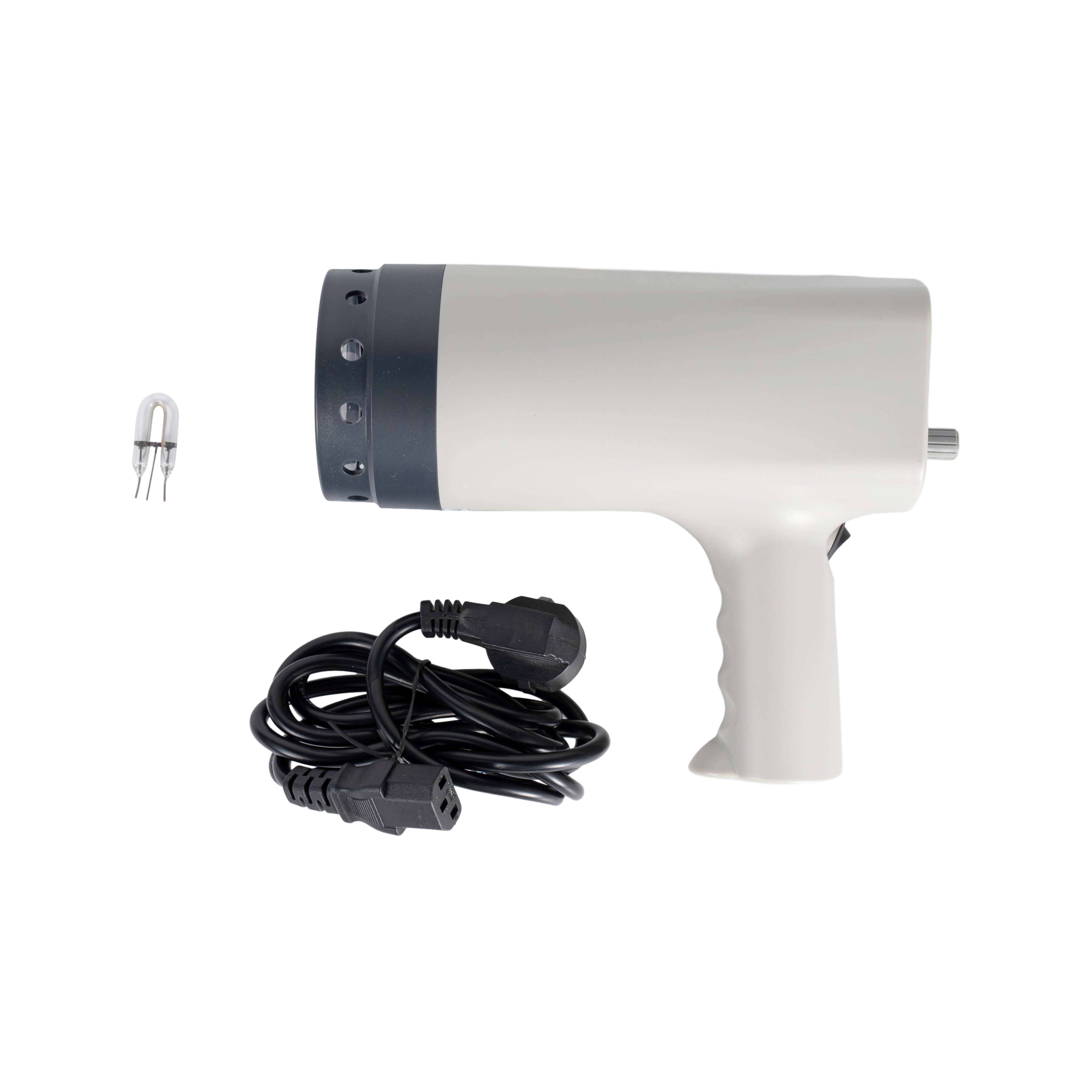

| Optional Accessories | Stroboscope Lamp |
Rechargeable Battery (AT-135A Only)
|
