Product Description

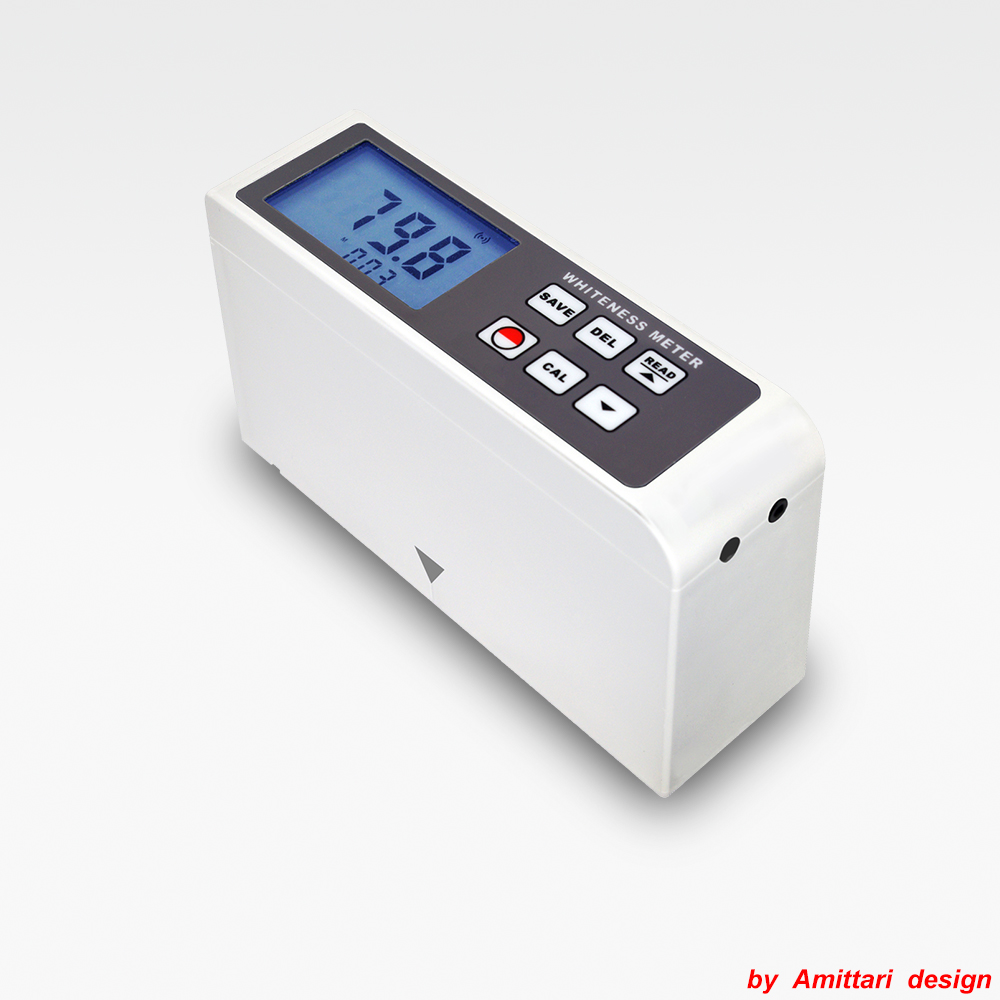

AMITTARI l Whiteness Meter is mainly used to directly measure the whiteness value of object or powder with flat surface. It
can be widely used in whiteness measurement of textile printing and dyeing, paint, chemical building materials, paper board,
plastic products, white cement, ceramics, enamel, talc powder, starch, flour, salt, detergent, cosmetics and other substances.
The instrument pass strict inspection and testing, conforms to the JJG 512-2002 Whiteness Meter Verification Regulation.
Also conforms to GB3978、GB3979、GB7973、GB7974、ISO2470、GB8904.2、QB1840、GB2913、GB13025.2、GB1543、
ISO2471、GB10339、GB5950、GB12911、GB2409 and other standards.
Product Features
* It consists of Light Source, Optical System, Detection System, Data Process and Display System.
* Use of high quality imported components, good reliability.
* The optical path design is reasonable, simple. Adopt filter system with correction, the whiteness can be reflected quantitatively.
* No preheating after starting, measurements can be taken after simple calibration, easy to operate.
* Able to memory 254 groups of measurement data.
* Use USB/RS-232 data output to connect with PC.
* Provide Bluetooth data output choice.
Operational Principle
The Illuminant of the instrument is long-life LED with 457nm, conforming to the light source requirement in the JJG 512-2002 National Metrological Whiteness Meter Verification Regulation. The measurement of the instrument adopts the principle of photoelectric effect. The diffuse reflectance Radiant Brightness Energy Value of the sample surface is receive by the optical cell. Then, the value is amplified by high-precision auto zeroing operation amplifier, inputted to the calibration circuit for energy calibration. Then, the whiteness value of the sample is directly shown on the digital display.
Product Parameters
| Measuring Range | 0~120 |
| Resolution | 0.1 |
| Illumination Condition | 45/0 |
| Illuminant | LED 457 nm |
| Whiteness Formula | Blue Light Whiteness WB=R457 |
Measuring Aperture | 11x18 mm Rectangle |
| Zero Drift | ≤0.1 |
| Stability of Display | ≤0.5 |
| Repeatability | ≤0.1 |
| Operating Condition | Temperature: 0~40 ℃ Humidity: <85 %RH |
| Power Supply | Lithium Battery |
| Size | 136x44x78 mm |
| Weight | 305 g (Not including batteries) |
Product Accessories
Standard Accessories | Main Unit |
Standard White Board |
| Optical Cleaning Cotton Cloth |
AC Adaptor |
Optional Accessories | Constant Pressure Powder Forming Apparatus |
| USB/RS-232 data output |
Bluetooth data output |
Buying Guide
When you choose the model number of Amittari instrument, the default is standard delivery. If you need other optional accessories, please tell our customer -service worker.
The following three items are basic optional accessories choices
Standard Accessories+USB data output
Standard Accessories+Bluetooth data output
Bluetooth Accessories
Amittari instruments generally can be supplied with Bluetooth™ data output function ( except few instruments ) . As Bluetooth™ data output is included in optional accessories, not standard delivery,it needs to be indicated when choose.10 meters to 100 meters distance can be chosen.Please kindly contact with the customer-service worker if you need Bluetooth™ data output.
