Product Description

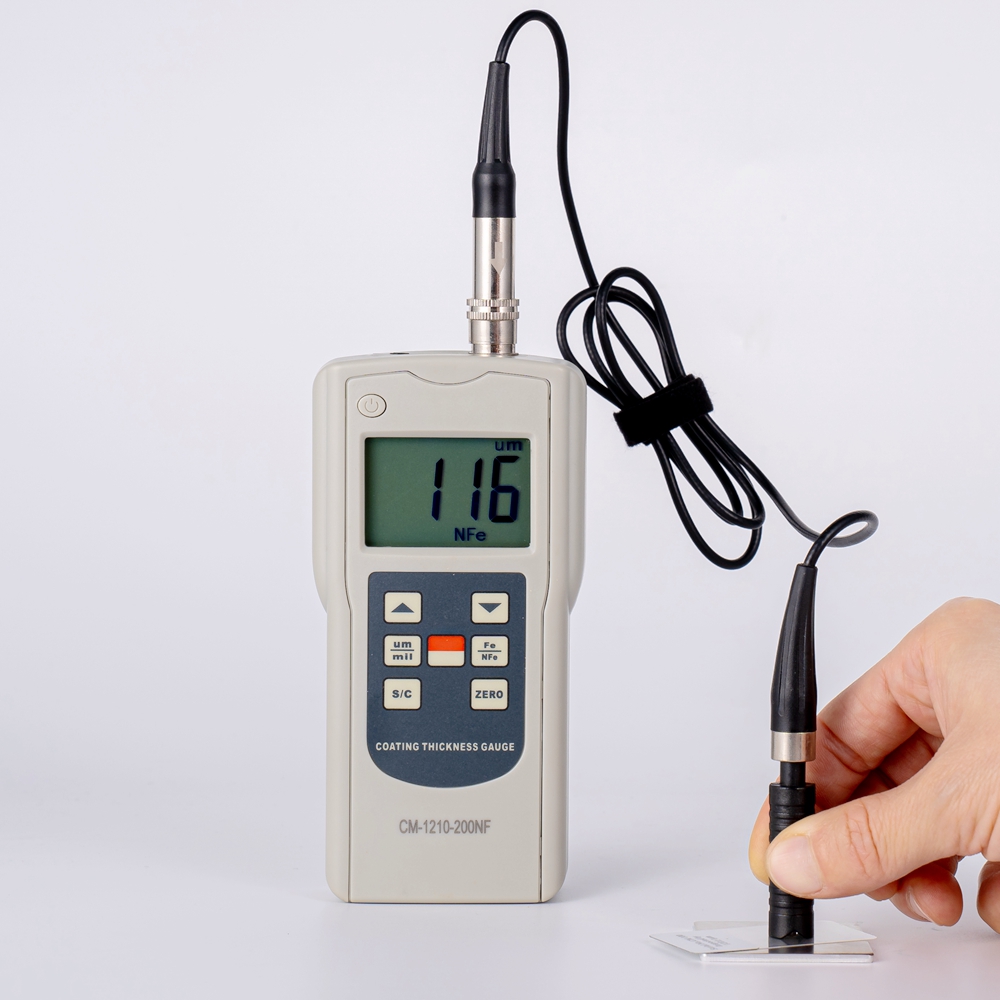

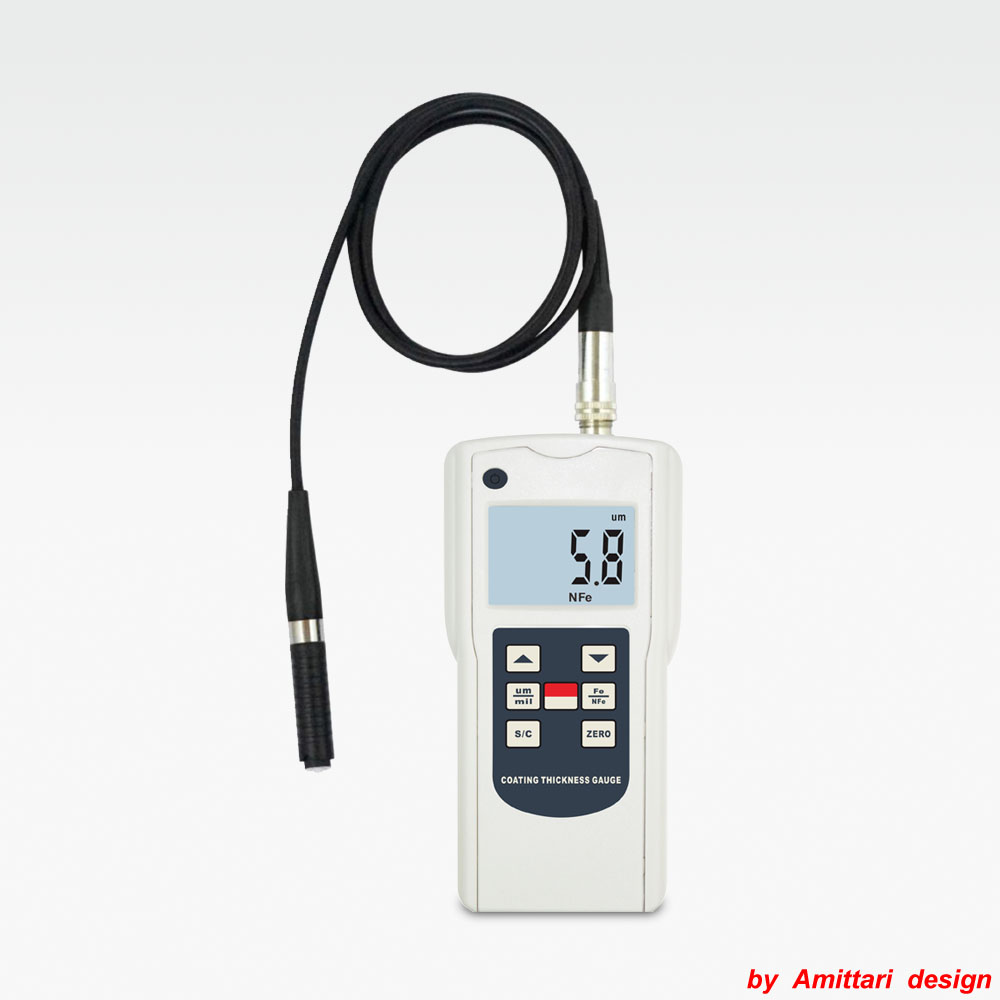

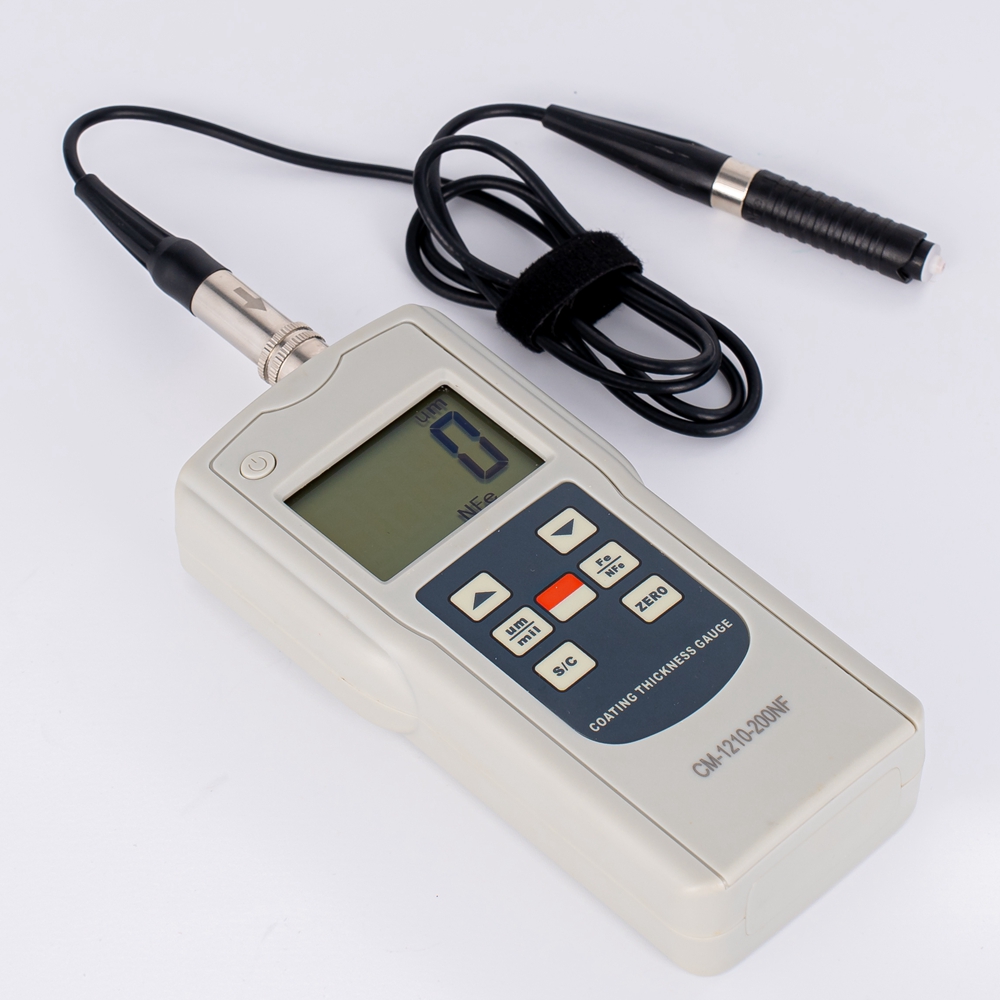

AMITTARI Micro Coating Thickness Gauge have two types: F Type, NF Type; Suitable for automotive, paint layer coating
thickness measurement. Specially for the thickness measurement of coating on small workpiece. It is a kind of portable
measuring instrument, it can quickly, no damage and precise coating, coating thickness measurement; Not only can be used
in the laboratory, also can be used in the engineering field; Through the use of different measuring head, but also can meet
the needs of a variety of measurement; Widely used in manufacturing, metal processing industry, chemical industry,
commodity inspection and testing field; Is the material protection professional. necessary instruments.
Product Parameters
| Measuring Range | 0~200 um
|
0~8mil
|
| Resolution | 0.1 um / 0.1mil
|
Accuracy:
| 1~3%n or 2.5 um or 0.1mil (Whichever is the greater)
|
| Minimum Measurement Area | 2 mm
|
Minimal Surface | NF Type convex 2 mm / concave 4 mm
|
| Operating Condition | Temp: 0~50°C
|
Humidity: <95%
|
Size
| 140x70x30 mm
|
| Power Supply | 4x1.5vAAA Um-4 Battery
|
Weight
| 130 g (Not including batteries)
|
Product Accessories
Standard Accessories
| Main Unit
|
| Calibration Foils |
| Substrate ( Aluminium ) |
Sensor |
Carrying Case
|
Operation Manual
|
Optional Accessories
| USB data output |
Bluetooth data output
|
Buying Guide
When you choose the model number of Amittari instrument, the default is standard delivery. If you need other optional accessories, please tell our customer -service worker.
The following three items are basic optional accessories choices
Standard Accessories+USB data output
Standard Accessories+Bluetooth data output
Bluetooth Accessories
Amittari instruments generally can be supplied with Bluetooth™ data output function ( except few instruments ) . As Bluetooth™ data output is included in optional accessories, not standard delivery,it needs to be indicated when choose.10 meters to 100 meters distance can be chosen.Please kindly contact with the customer-service worker if you need Bluetooth™ data output.
