Product Description
The Glossmeter applies to Ink, paint, paint, paint, decoration materials, wood, marble, granite, polishing brick, tile measurement, paper and other non-metallic materials surface gloss test.
Glossmeter have different kinds of measurement
angles. Generally, 20° applies to High Gloss Materials,
60° applies to Medium Gloss Materials, 85° applies to
Low Gloss Materials. Two additional angles are used
for other materials. An angle of 45° is specified for the
measurement of ceramics, films, textiles and anodised
aluminium, whilst 75° is specified for paper and printed
materials.

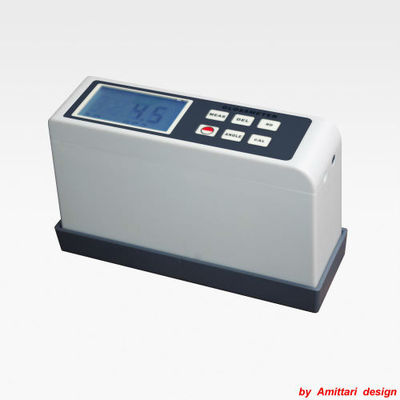

The Model AG-104B, with angle of 45°, is specified for the
measurement of ceramics, films, textiles and anodised
aluminium.
Product Feature
* All intelligent design, rapid measurement.
* Has voltage undervoltage indication function.
* During operation will be issued a prompt tone.
* Accurate measurement, good repetitiveness.
* Use USB data output with connection PC.
* Provide Bluetooth data output choice.
Product Parameters
| Measuring Angles | 45° |
Measuring Range
| 0.1 ~ 200 GU |
Stability
| ±0.4GU/30Min |
Error
| < ± 1.2GU |
Accuracy
| ±1.0 gloss unit ( against reference standard ) |
Resolution
| 0.1 GU
|
Repeatability
| ±0.5 GU(0 ... 99.9)
|
Environment Temperature
| 0°C~40°C
|
| Relative Humidity | No more than 85% |
| Power Supply | Built-in 3.7V lithium Battery |
| Size | 136x44x78 mm |
| Weight | 350g (Including Batteries) |
Product Accessories
Standard Accessories
| Main Unit
|
Carrying Case
|
| Operation Manual |
| Holder with calibration standard |
| Optic cleaning cloth |
| Power adapter |
Optional Accessories
| USB data output |
| RS-232 Data Output |
Bluetooth data output
|
CATALOG
Buying Guide
When you choose the model number of Amittari instrument, the default is standard delivery. If you need other optional accessories, please tell our customer -service worker.
The following three items are basic optional accessories choices
Standard Accessories+USB data output
Standard Accessories+Bluetooth data output
Bluetooth Accessories
Amittari instruments generally can be supplied with Bluetooth data output function ( except few instruments ) . As Bluetooth data output is included in optional accessories, not standard delivery, it needs to be indicated when choose 10 meters to 100 meters distance can be chosen. Please kindly contact with the customer-service worker if you need Bluetooth data output.
