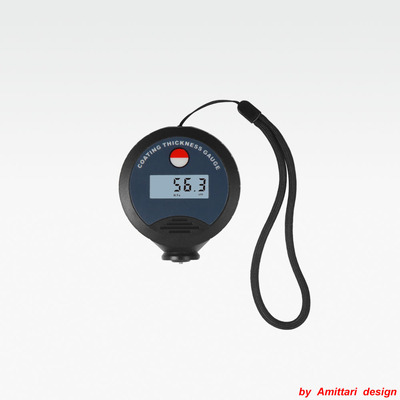

Product Description
The Coating Thickness Gauge is suitable for automotive, paint layer coating thickness measurement; Integral Type suitable
for single-hand operation, large probe with large contact surface have better stability, users can get continuous, good
repetitive and precise measurements. It is a kind of portable measuring instrument, it can quickly, no damage and precise
coating, coating thickness measurement; Not only can be used in the laboratory, also can be used in the engineering field;
Through the use of different measuring head, but also can meet the needs of a variety of measurement; Widely used in
manufacturing, metal processing industry, chemical industry, commodity inspection and testing field; Is the material
protection professional. necessary instruments.
Product Feature
* It is not only a F type gauge but also a NF type gauge.
* Digital backlit display gives exact reading with no guessing or errors.
* Two measurement mode: Single and Continuous.
* Wide measuring range and high resolution.
* Manual or automatic shut down.
* Optional USB Cable to connect with PC.
Product Parameters
| Measuring Range | 0~500µm/0~20mil
|
| Resolution | 0.1µm |
Accuracy:
| 1~3%n or 2.5 µm or 0.1mil (Whichever is the greater)
|
| Minimum Measurement Area | 6 mm
|
Minimal Surface | F Type convex1.5 mm / concave 25 mm
|
NF Type convex 3 mm / concave 50mm
|
| Operating Condition | Temp: 0~50°C /
|
Humidity: <95%
|
Size
| 72x63x27mm
|
| Power Supply | 2x1.5vAAA Um-4 Battery
|
Weight
| 55g (Not including batteries)
|
Product Accessories
Standard Accessories
| Main Unit
|
Calibration Foils
|
Substrate ( Iron )
|
Substrate ( Aluminium )
|
Leather Bag
|
Operation Manual
|
Optional Accessories
| USB data output |
