Product Description

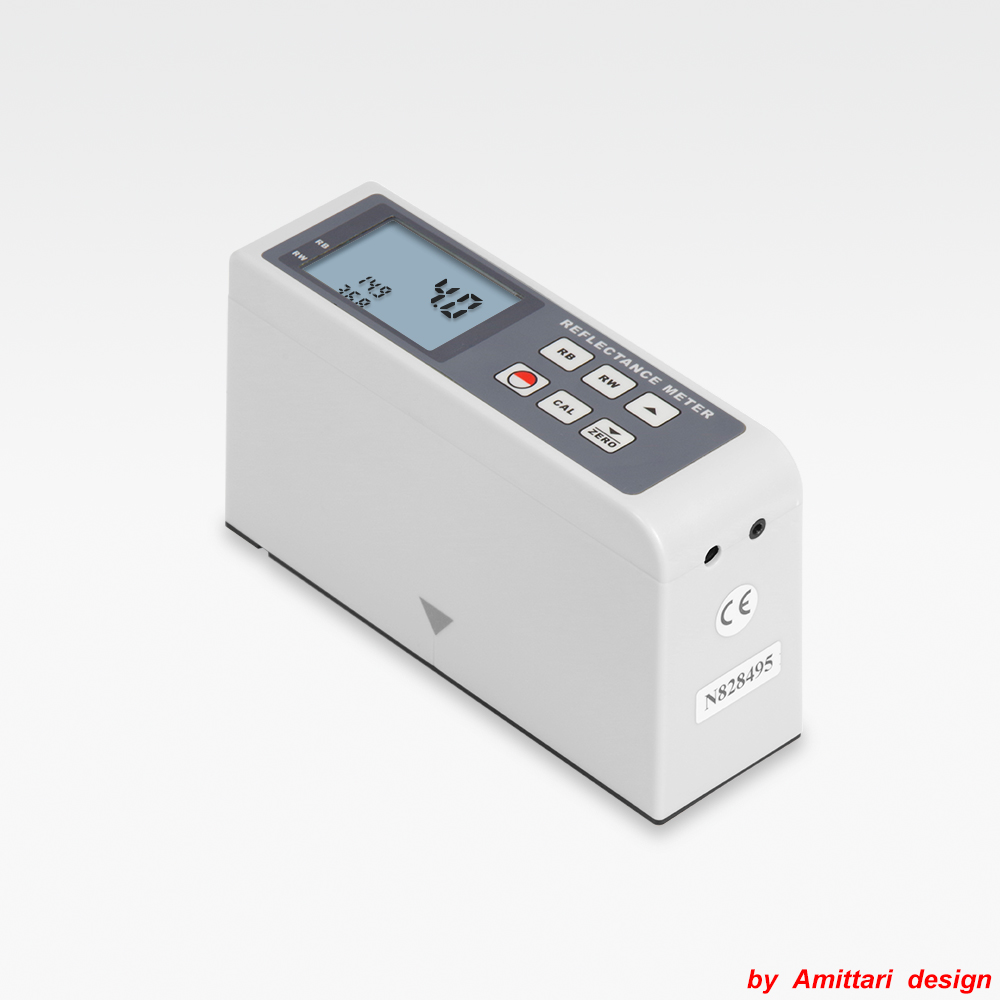

Amittari Reflectance Meter can not only measure the transparency extent of coating, grease, film, plastic products, organic products; but also the reflectivity of solid surface (such as stereo movie screen).
It is widely used in coatings, pigments, inks, plastics, printing and dyeing, leather, film screenings and other industries, for product quality or standardized inspection and management.
Product Feature
* It meets the international standards of ISO3906-1980 (E), ISO3905, ISO2814, and the national standards of GB/T13452.3-92, GB9270-88, GB5211.17-88.
* This instrument is composed of main unit, standard board (a black one and a white one), testing board (a black one and a white one).
* When the reflected light of the sample acts on the surface of the photocell, an electric signal is input into the DC amplifier and amplified for reading on the display.
* Use USB data output to connect with PC.
* Provide Bluetooth ™ data output choice
Product Parameters
| Range | 0~100
|
Resolution
| 0.1 |
Accuracy
| ±1
|
| Repeatability | 0.3 |
| Measurement Area | 7x14mm (Ellipse) |
The display data is in direct proportion to the reflected light.
The spectral sensitivity of the instrument is approximately equal to the product of Sc(λ) and y(λ). |
| Operating Conditions | Temperature : 0~40°C |
Humidity: <85%
|
Power Supply
| 3.7V Lithium Battery
|
Size
| 141x45x79mm
|
Weight
| 310g (Including Battery)
|
Product Accessories
Standard Accessories
| Main Unit
|
| Standard Board (Black) |
| Standard Board (White) |
| Testing Board (Black) |
| Testing Board (White) |
| Power Adapter |
| Optic Cleaning Cloth |
Carrying Case
|
| Operation Manual |
Optional Accessories
| USB Data Output |
| Bluetooth™ Data Output |
download
Catalogue
Manual
Buying Guide
When you choose the model number of Amittari instrument, the default is standard delivery. If you need other optional accessories, please tell our customer -service worker.
The following three items are basic optional accessories choices
Standard Accessories+USB data output
Standard Accessories+Bluetooth data output
Bluetooth Accessories
Amittari instruments generally can be supplied with Bluetooth data output function ( except few instruments ) . As Bluetooth data output is included in optional accessories, not standard delivery,it needs to be indicated when choose 10 meters to 100 meters distance can be chosen.Please kindly contact with the customer-service worker if you need Bluetooth data output.
