Product Description
The grain moisture meter is used for fast and accurate measurement of moisture in the process of allotment, acquisition, storage, machining of packed grains, feedstuff, powder.
Product Feature
* Able to measure grains up to 37 species.
* Two presentations, digital display and color coded LED indication.
* Use the exclusive Micro-computer LSI circuit and crystal time base to offer high accuracy measurement. It can obtain automatically the temperature corrected moisture value.
* Use USB data output with connection PC.
* Provide Bluetooth data output choice.
Grains & Codes
| Code | Grain | Range (%) |
Cd01
| Wheet / Rye (Whole) | 7-31 |
| Cd02 | Wheet / Rye (Ground) | 7-29 |
| Cd03 | Paddy (Whole) | 7-29 |
| Cd04 | Paddy (Ground) | 7-26 |
| Cd05 | Rice (Milled) | 7-29 |
| Cd06 | Semolia | 7-25 |
| Cd07 | Maize / Corn (Whole) | 7-27 |
| Cd08 | Maize / Corn (Ground) | 7-26 |
| Cd09 | Soya Beans (Whole) | 6-28 |
| Cd10 | Soya Beans (Ground) | 5-22 |
| Cd11 | Barley Oats (Whole) | 7-34 |
| Cd12 | Barley Oats (Ground) | 7-29 |
| Cd13 | Coffee (Whole) | 7-31 |
| Cd14 | Coffee (Ground) | 7-26 |
| Cd15 | Coffee Green (Ground) | 7-27 |
| Cd16 | Cocoa Beans (Whole) | 4-13 |
| Cd17 | Linseed (Whole) | 6-21 |
| Cd18 | Lentils (Ground / Whole) | 7-21 |
| Cd19 | Oilseed Rape (Ground) | 5-26 |
| Cd20 | Mustard Seed (Whole) | 7-21 |
| Cd21 | Sorghum / Milo (Whole) | 7-31 |
| Cd22 | Sorghum / Milo (Ground) | 7-29 |
| Cd23 | Sunflower Seed (Whole) | 7-29 |
| Cd24 | Sugarbeet Seed (Whole) | 7-26 |
| Cd25 | Flax (Whole) | 7-29 |
| Cd26 | Peas (Progreta) (Ground) | 7-25 |
| Cd27 | Peas (Ground) | 7-27 |
| Cd28 | Ground Nuts Hulled (Whole) | 7-26 |
| Cd29 | Grass Seed / Rye Grass (Whole) | 6-28 |
| Cd30 | Grass Seed / Cocksfoot (Whole) | 5-22 |
| Cd31 | Four / Soft Wheat | 7-34 |
| Cd32 | Clover / White Seed (Whole) | 7-29 |
| Cd33 | Clover / Red lucerne Sees (Whole) | 7-31 |
| Cd34 | Buckwheat (Ground) | 7-26 |
| Cd35 | Brassicas / Brussels Sprout (Whole / Ground) | 7-27 |
| Cd36 | Beans / Tic / Winter (Ground) | 4-13 |
| Cd00 | Fibre Material, for example Tea |
|
Product Parameters
| Display Lights | With colour coded LED indication of measurement and moisture state |
Green LED represents a safe, air-dry state.
|
Yellow LED represents a borderline State.
|
Red LED represents a damp state.
|
Accuracy
| ± (0.5%n+1) |
Measurement Range
| 7~30%
|
| Operating conditions | Temperature : 0~50 ℃ |
Humidity : below 90% RH
|

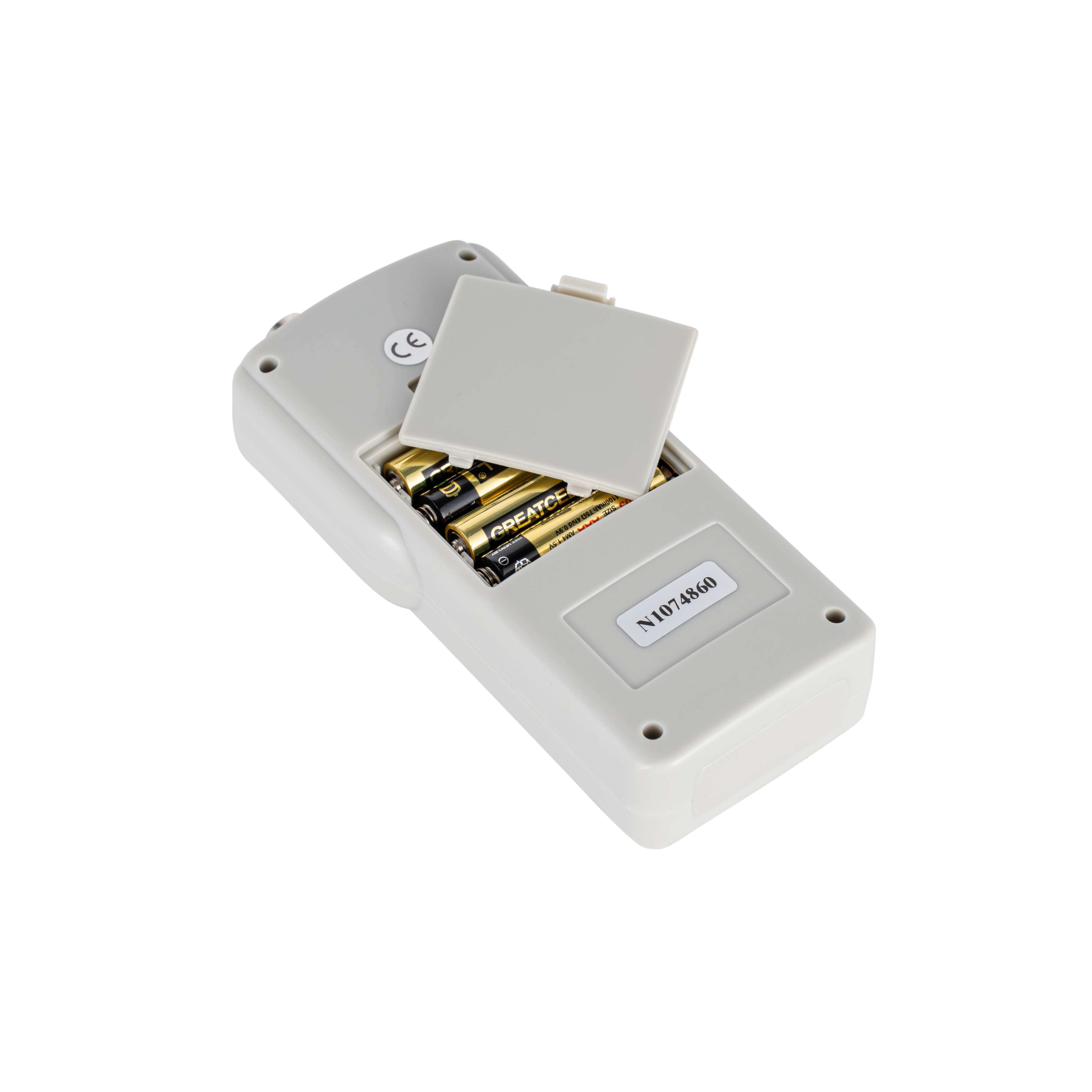

Power Supply
| 4x1.5vAAA Um-4 Battery
|
| Size | Main Unit: 140x70x30 mm
|
| Sensor Cup: 115x66x66mm |
| Weight | 520g (Not including batteries) |

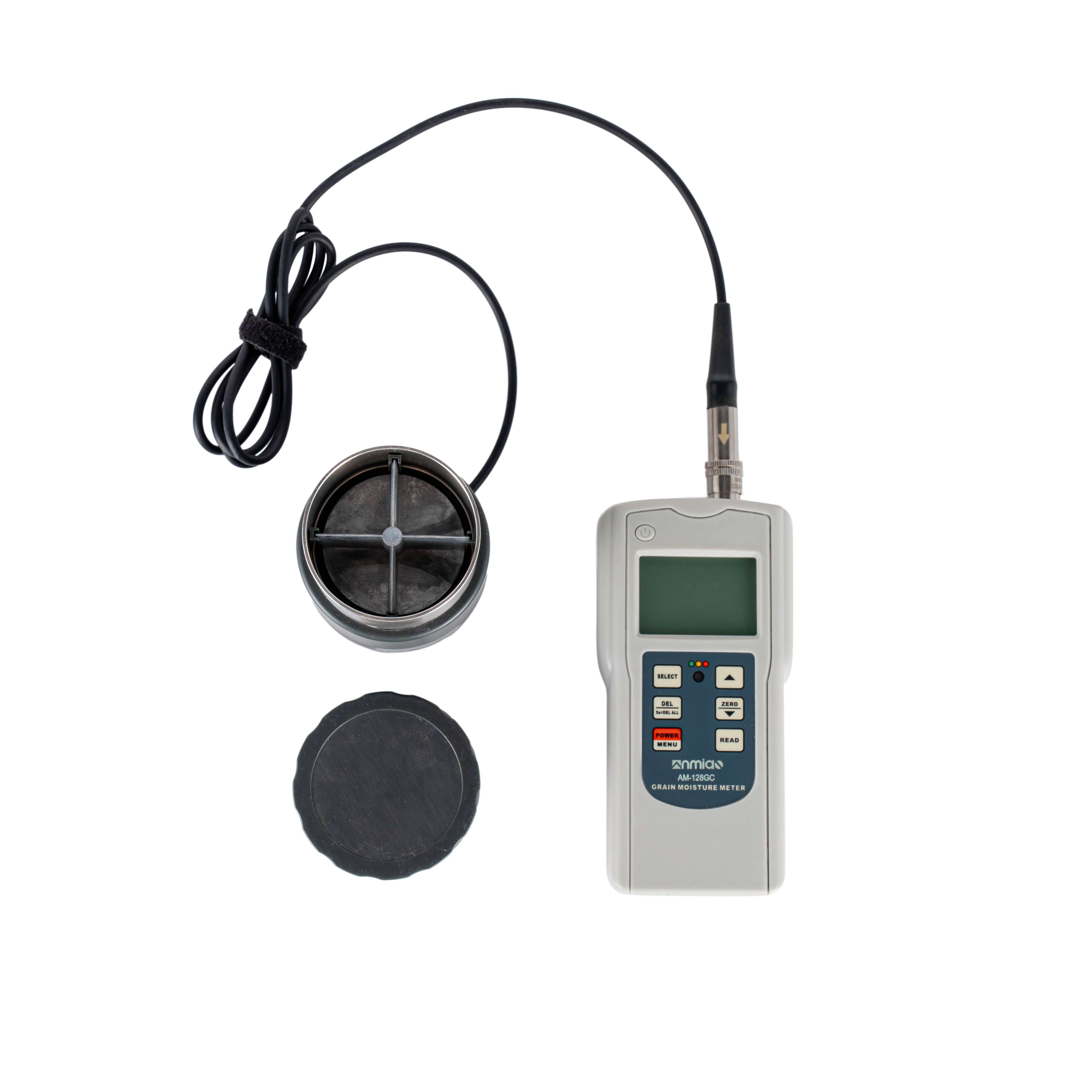

Product Accessories
Standard Accessories
| Main Unit
|
Carrying Case
|
Operation Manual
|
Sensor Cup
|
Optional Accessories
| USB data output |
Bluetooth data output
|
Buying Guide
When you choose the model number of Amittari instrument, the default is standard delivery. If you need other optional accessories, please tell our customer -service worker.
The following three items are basic optional accessories choices
Standard Accessories+USB data output
Standard Accessories+Bluetooth data output
Bluetooth Accessories
Amittari instruments generally can be supplied with Bluetooth data output function ( except few instruments ) . As Bluetooth data output is included in optional accessories, not standard delivery,it needs to be indicated when choose 10 meters to 100 meters distance can be chosen.Please kindly contact with the customer-service worker if you need Bluetooth data output.
