Product Description
AMITTARI Moisture Meter Be a multifunctional instrument for measuring the moisture content of wooden articles,wood fiber materials such as bamboo wares, carpentry, Chinese traditional medicine, tobacco, cotton, paper, building, soil and other non-conductive materials.
Product Feature
*Two measurement modes: Search Type & Pin Type.
* With metric and imperial conversion.
* Auto switch off and manual shutdown.
* With maximum value stored & With average value calculation function.
* Use “USB data output” and “RS-232 data output” with connection PC.
* Provide “Bluetooth ™ data output” choice.
Product Parameters
| Display | 4 digits, 10 mm LCD |
Display Lights | LED Display lights (Used to display the measurement results and moisture status) |
| Green LED represents a safe, air-dry state. |
| Yellow LED represents a borderline State. |
| Red LED represents a damp state. |
|
| Measurement Range | 0%~80% ( when code=cd01 in a Pin mode ) |
| Measurement Code | 10 codes for up to 150 species ofmaterials |
| Accuracy |
±0.5%n or ±0.5% |
Operating Conditions | Temperature : 0~50 ℃ |
| Humidity : below 90% RH |
| Power Supply | 4X1.5vAAA ( UM-4 Battery ) |
| Dimensions | 160mmx60mmx25 mm |
| Weight | 120g ( Not Including Batteries ) |
Product Accessories
Standard with secondary

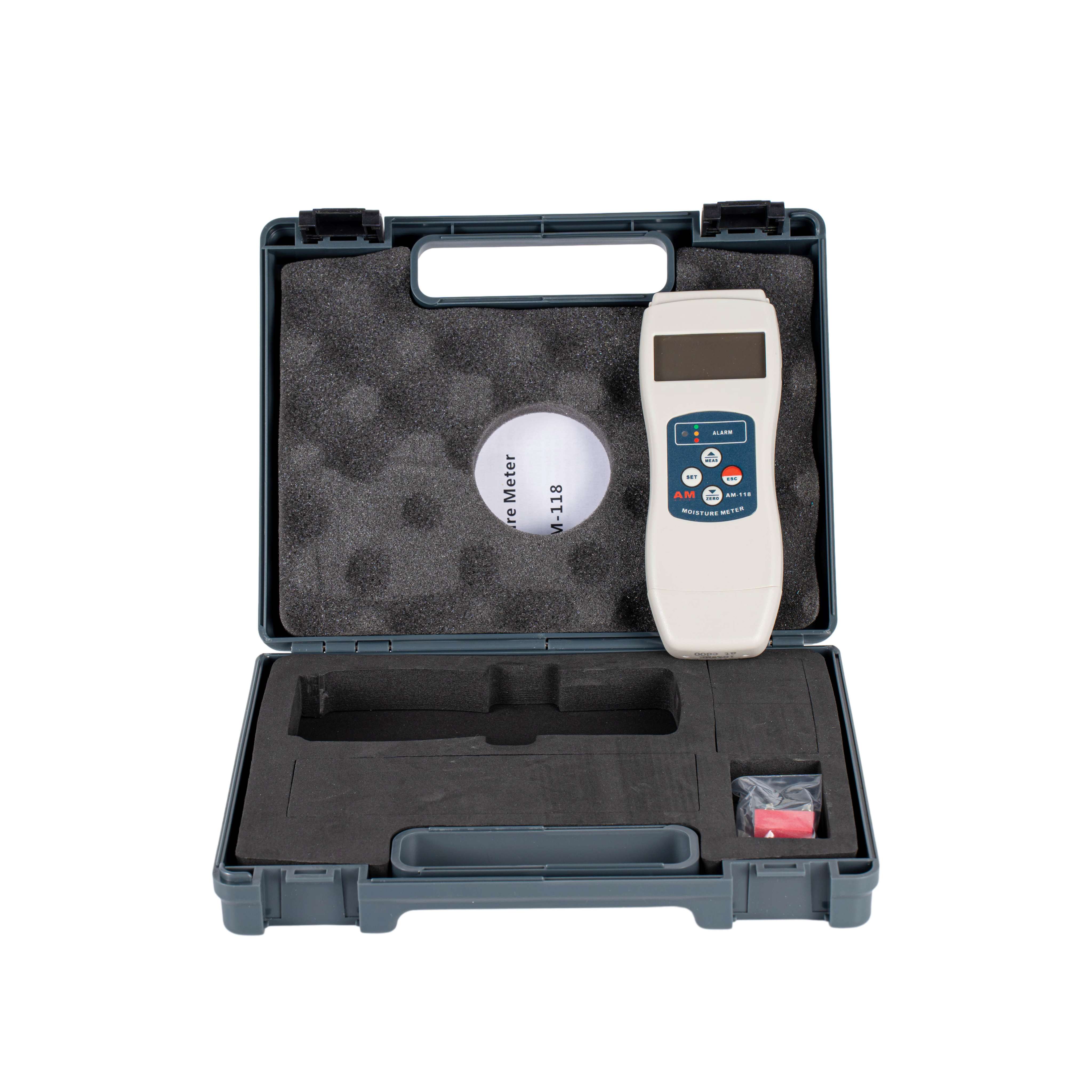

| Main Unit ( 1pc ) |
Carrying Case ( 1pc ) |
| Operation Manual ( 1pc ) |
Optional accessories | Split Type Sensor |
USB Data Output |
| RS-232 Data Output |
| Bluetooth™ Data Output |
Buying Guide
When you choose the model number of Amittari instrument, the default is standard delivery. If you need other optional accessories, please tell our customer -service worker.
Downloads
Moisture Meter-Catalog
Moisture Meter-Manual
