Product Description
Making job task analysis and ergonomic analysis simple and accurate, it is ideal for workplace design, strength assessment and ergonomic research.
Product Feature
*High accuracy and high resolution.
*Digital display with no guessing or errors.
*With 4 measurement unit for selection, N, kg, lb, g.
*With peak value hold function.
*With 10 minutes auto power off and manual power off.
*Either alkaline battery Power supply or 5V DC power.
Product Parameters
| Mode | FG-104M |
Force Rang | ±50kgf,±490N,±110Lbf |
Resolution | 0.01kgf,0.1N,0.1Lbf |
Accuracy
| ±0.5%FS ± 1Digit |
| Unit | kgf, gf, N, Lbf |
|
| Measurement State | Peak Value Measurement, Real Time Measurement |
| Display | 2 Reversed 4 Digit LCD |
| Power Off | 10 Minutes Auto Power Off, Manual Power Off |
| Backlight | Backlight |
Safe Load | 150%FS (Buzzer Alarm Over 110%FS) |
Power Supply | 2x1.5 AA(UM-3) Battery or 5VDC Power Supply |
Operating | 0°C~40°C |
| Conditions | < 80% |
| Surrounding | No Vibration Source or Corrosive Medium Around |
Weight | 705 g |
Size | host machine:170mm*72mm*35mm handspike:315mm*Φ30mm Instrument stents：155mm*95mm*35mm |

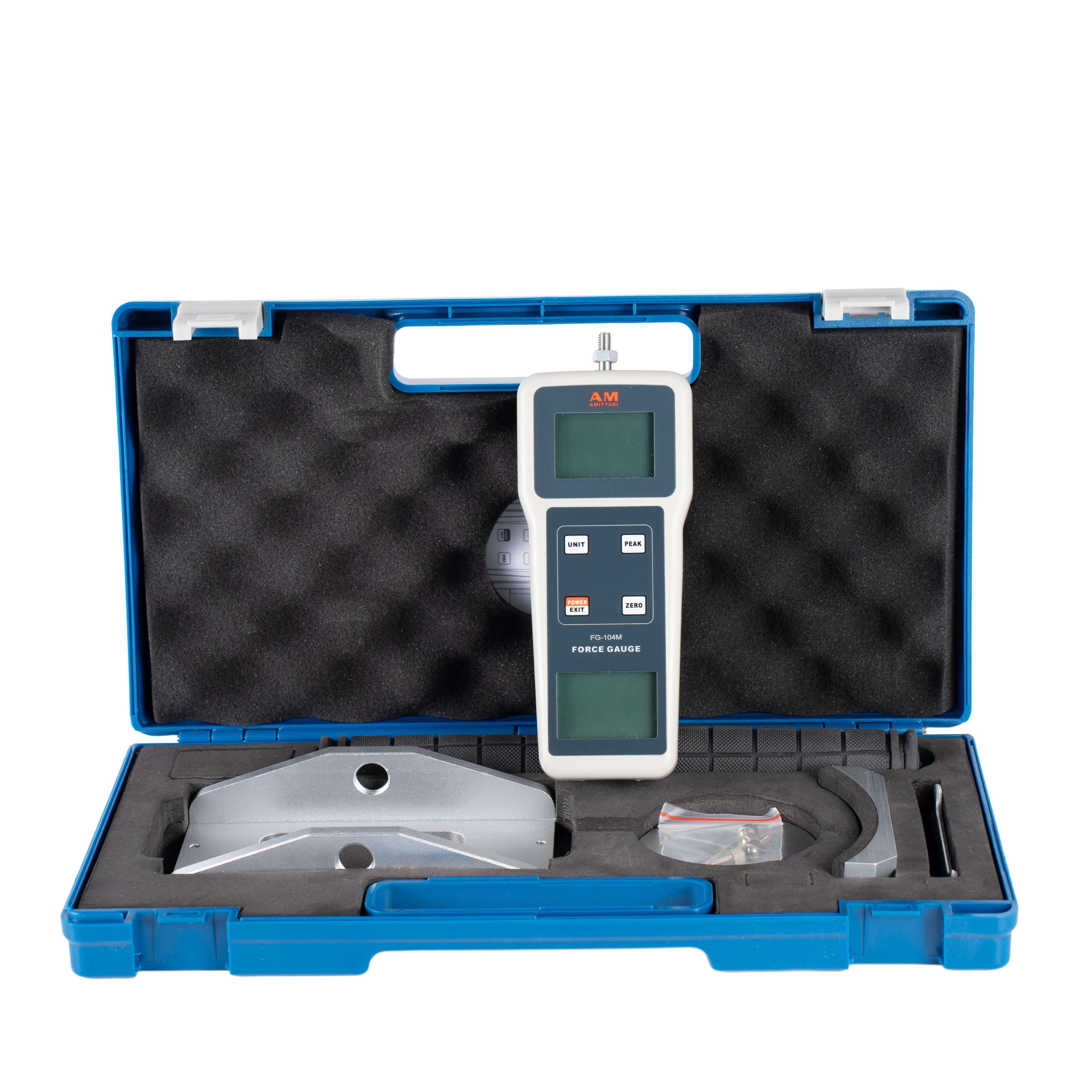

Product Accessories
Standard accessories | The host |
Carrying Case |
| Instrument stents |
4 M3*18 screws |
E-1005 |
Optional accessories | External USB power supply cable |
| E-1004 |
Buying Guide
When you choose the model number of Amittari instrument, the default is standard delivery. If you need other optional accessories, please tell our customer -service worker.
Downloads
Test Muscle Strength FG-104M-Catalog
Test Muscle Strength FG-104M-Manual
