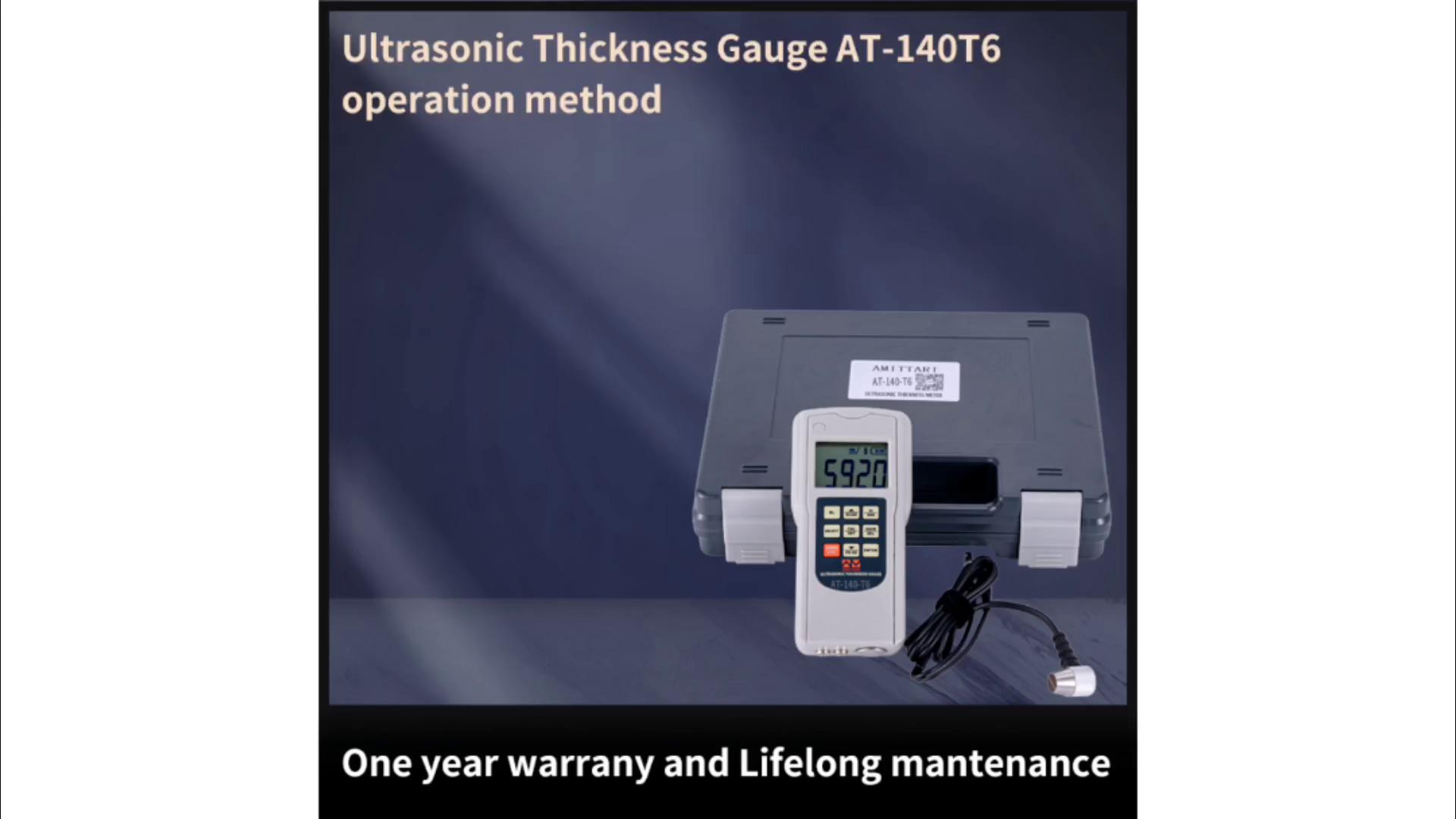

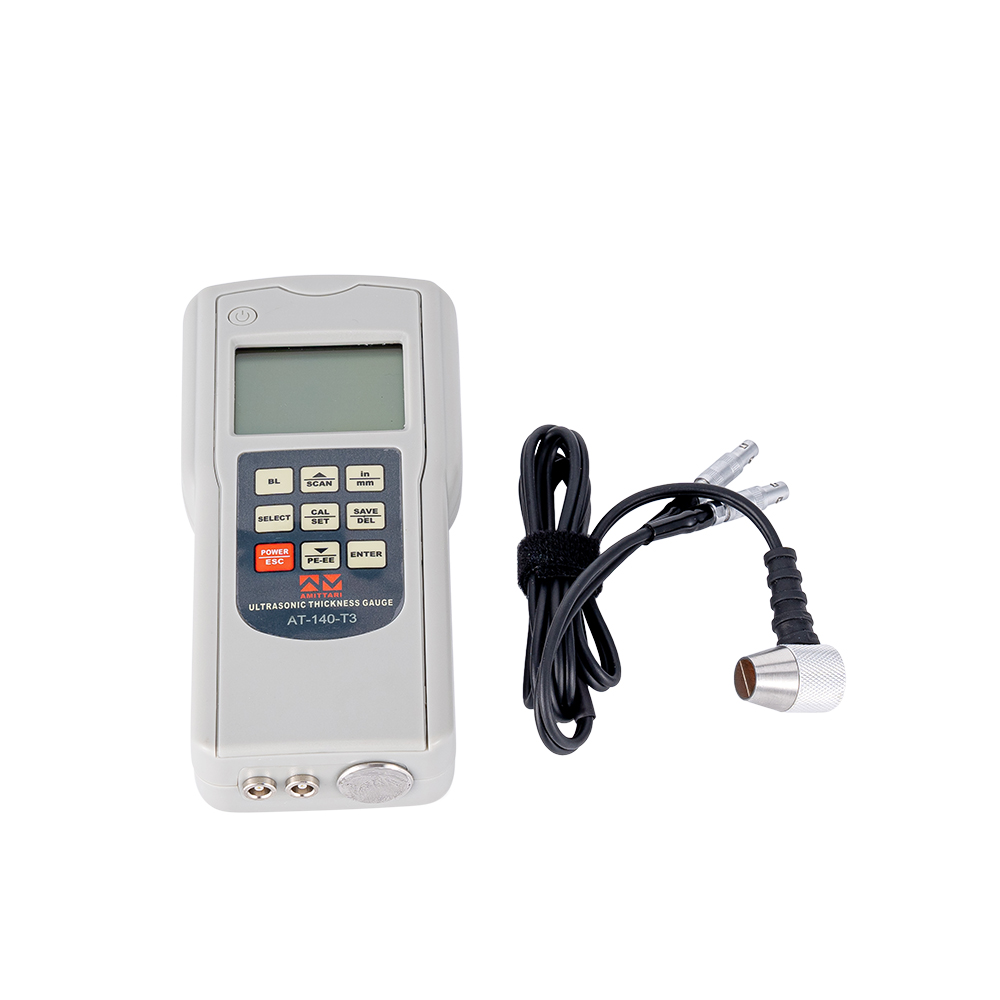

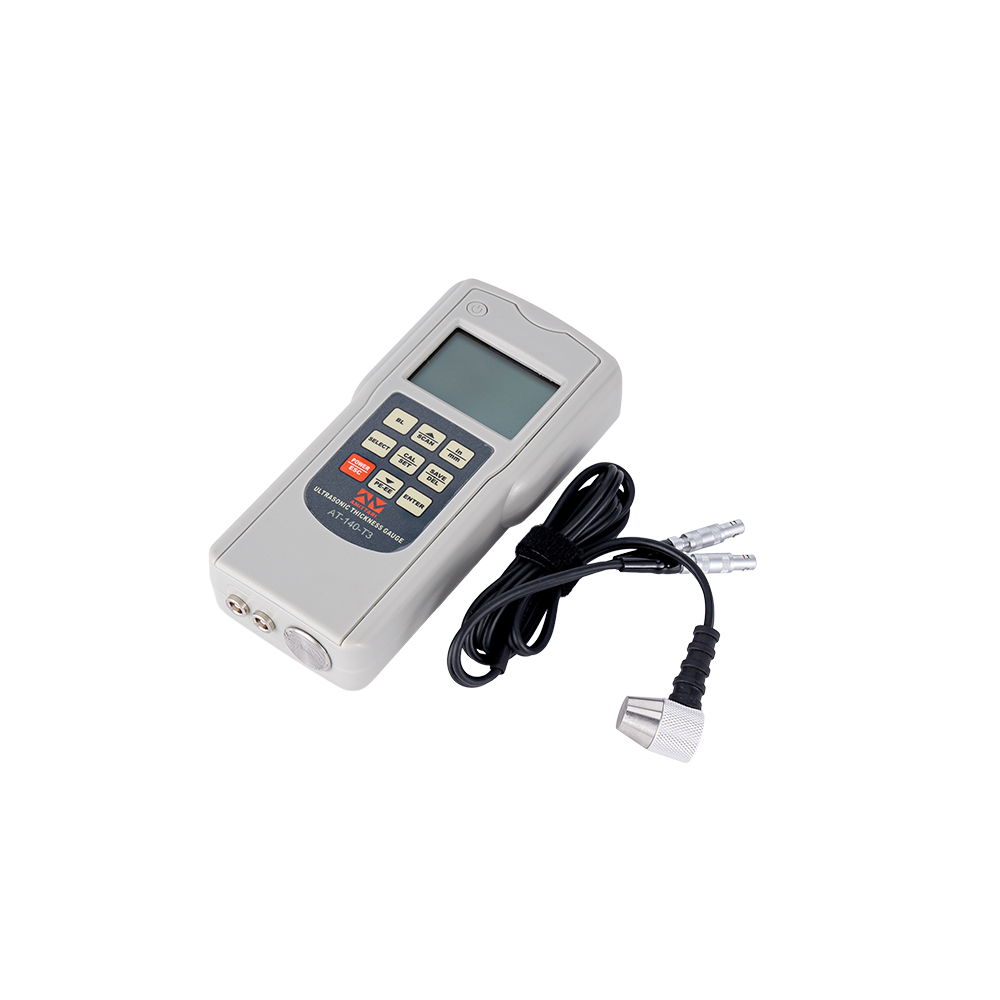

Product Description
The instrument is suitable for thickness measurement andcorrosion measurement of boilers, oil storage tanks, pipes,pipes, slabs, forgings, flanges, hull, deck, rails and machinedparts in petrochemical industry, shipbuilding industry,automobile manufacturing industry, power station and machine manufacturing industry. For most of the ultrasonic materials can be used to measure the thickness of the instrument, such as: metal, ceramic, plastic, nylon, glass and so on.
Product Feature
* Multi-mode: Pulse-Echo mode (used for flaw and pit detection) and Echo-Echo mode (used for measure ments eliminating paint or coating thickness).
* Using the latest high performance and low power consumption microprocessor technology.
* Automatic memory material code and sound velocity value, convenient to use.
* Use USB/RS-232 data output to connect with PC.
Test Philosophy
The digital ultrasonic thickness gauge determines the thickness of a part or structure by accurately measuring the time required for a short ultrasonic pulse generated by a transducer to travel through the thickness of the material, reflect from the back or inside surface, and be returned to the transducer. The measured two-way transit time is divided by two to account for the downand-back
travel path, and then multiplied by the velocity of sound in the material.
Product Parameter
| Unit System | Metric system or British system (optional) |
| Display | LCD with backlight |
Range | Pulse-Echo mode: (0.65-600)mm (in Steel) Echo-Echo mode: (3~60)mm |
Resolution | 0.1mm / 0.01mm / 0.001inch |
| Accuracy | ±(0.5%n + 0.05mm), depends on materials and conditions |
|
| Measurement Period | 4 times per second for single point mode and 10 times per second for scan mode |
| Sound Velocity | 1000m/s~9999 m/s |
| Unit System | Memory for up to 20 files(99 values for each file)of stored values |
| Working Mode | There are two working modes of thickness measurement: single mode and scan mode |
Operating Conditions | Temperature:0~40ºC Humidity:<85%RH |
Power Supply | 4x1.5V AAA(UM-4)Battery |
Dimensions | 142mmx72mmx34mm |
| Weight | 175g(Not Including Batteries) |

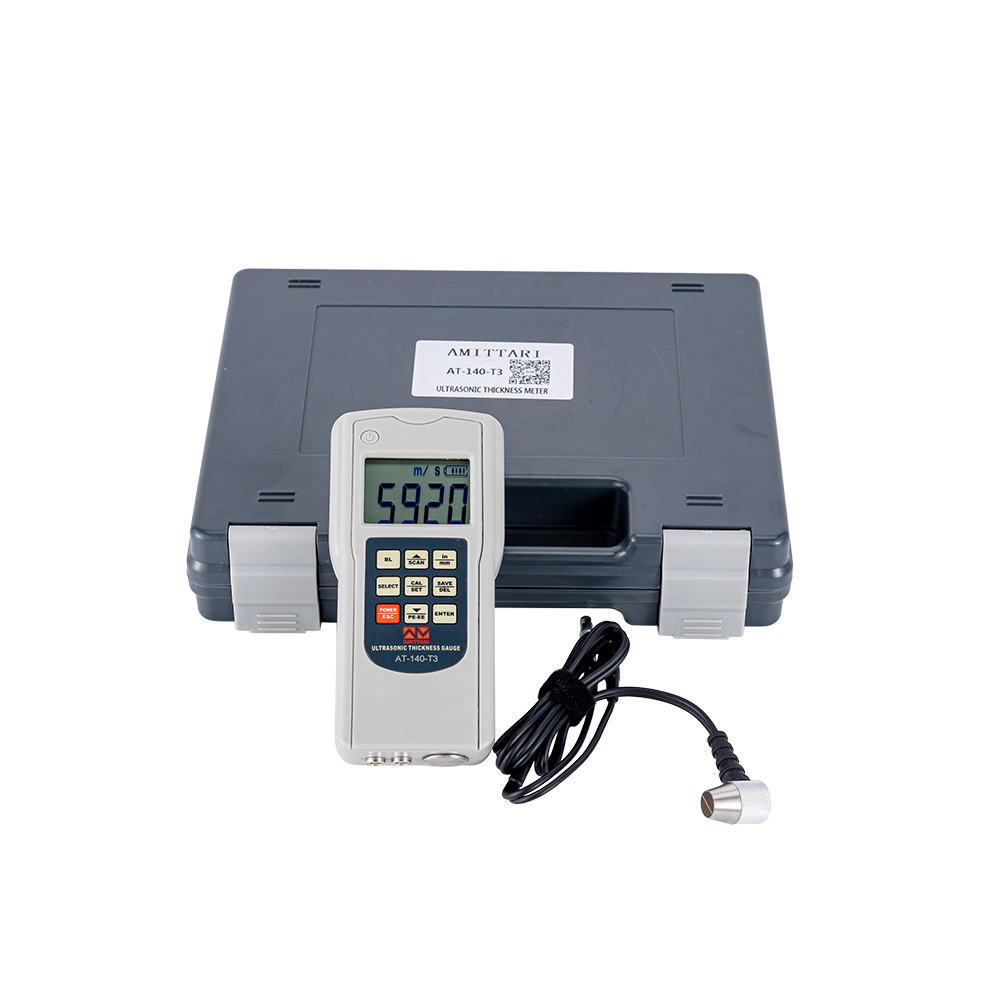

Standard accessories | Main Unit |
Standard Probe
|
Coupling Agent |
| Carrying Case(B04) |
Operation Manual |
Optional accessories | Other Special-purpose Probe |
| RS-232C Data Cable with Software |
| Bluetooth adapter and software |
Buying Guide
When you choose the model number of Amittari instrument, the default is standard delivery. If you need other optional accessories, please tell our customer -service worker.
Downloads
Ultrasonic Thickness Gauge AT-140T6-Catalog
Ultrasonic Thickness Gauge AT-140T6-Manual
