Product Description
Used for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks,etc. in industries of petroleum, shipbuilding, power station, and machine manufacturing. Applicable to measure the thickness of many materials, e.g. Steel, Cast iron, Aluminum, Red copper, Brass, Zinc, Quartz glass,
Polyethylene, PVC, Gray cast iron, Nodular cast iron.
Product Feature
* With high power of emission and broad band of receiving sensitivity, the gauge can match probes of
different frequencies. That makes it easy to measure the rough surface, even cast iron. It is widely used in almostall kinds of industries.
* The model AT-140C has bidirectional measurements, materials thickness is measurable with know velocity,
Conversely velocity is measurable with know thickness.
* Automatic memory material code and sound velocity value, convenient to use.
* Coupling symbol indication when measuring.
* Manual or automatic power off.
* Applies USB, RS-232, Bluetooth data output.
Product Parameter
| Model | AT-140C |
| Housing Material | Aluminum Alloy |
Display | Large Screen LCD |
Measuring Range | 0.75mm~400 mm ( 45 # steel, Depend on Probe ) |
Resolution |
MPE:(0.01+H/200)mm/ MPE:+(0.1+H/100)mm
|
|
| Accuracy | ±(0.5%n + 0.05mm), depends on materials and conditions |
| Sound Velocity | 500m/s~9,990 m/s |
| Lower Limit of Pipes | Φ15 x 2.0 mm Φ20 x 3.0 mm Determined By Transducer |
| Temperature | Temperature:0~40ºC Humidity:<85%RH |
Power Supply | 2x1.5V AA (UM-3) Battery |
Dimensions | 130mmx76mmx32mm |
| Weight | 340g (Not Including Batteries) |

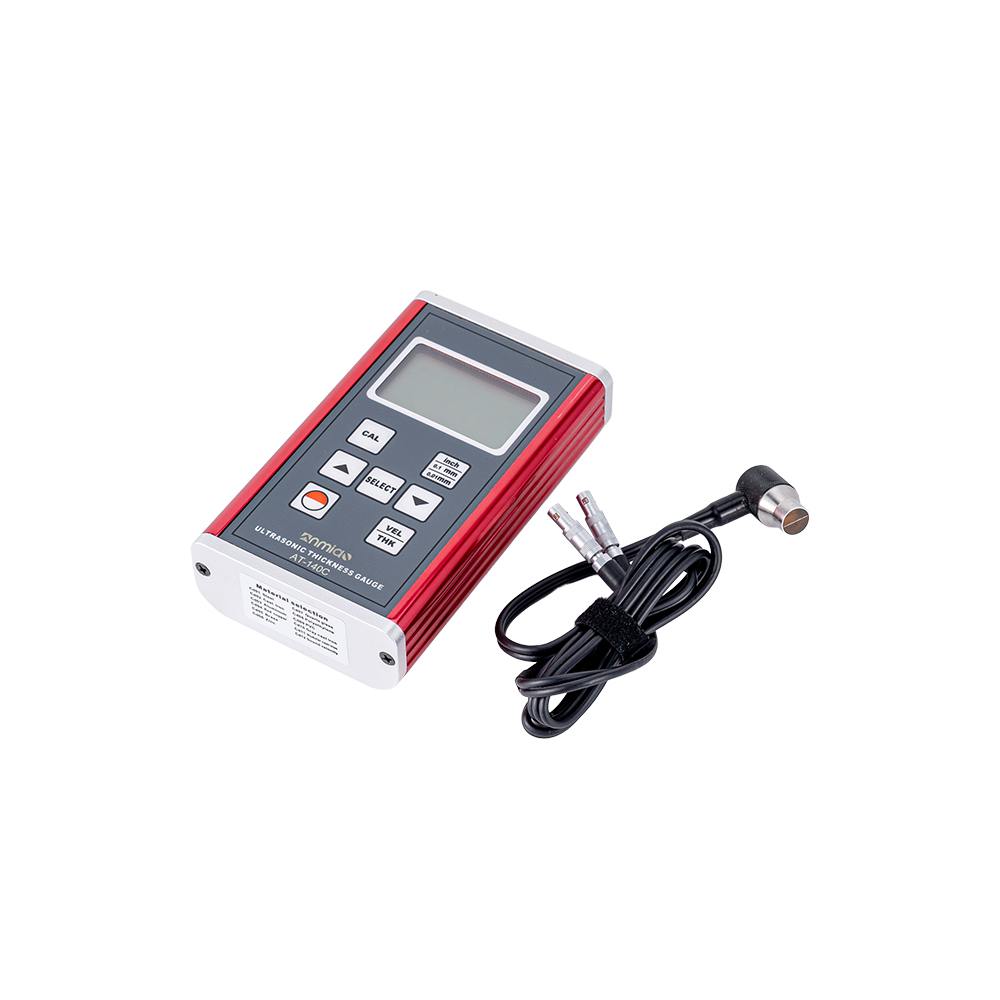

Standard accessories | Main Unit |
Standard Probe |
Coupling Agent |
| Carrying Case(B04) |
Operation Manual |
Optional accessories | Other Special-purpose Probe |
| RS-232C Data Cable with Software |
| Bluetooth adapter and software |
Buying Guide
When you choose the model number of Amittari instrument, the default is standard delivery. If you need other optional accessories, please tell our customer -service worker.
Downloads
Ultrasonic Thickness Gauge AT-140C-Catalog
Ultrasonic Thickness Gauge AT-140C-Manual
