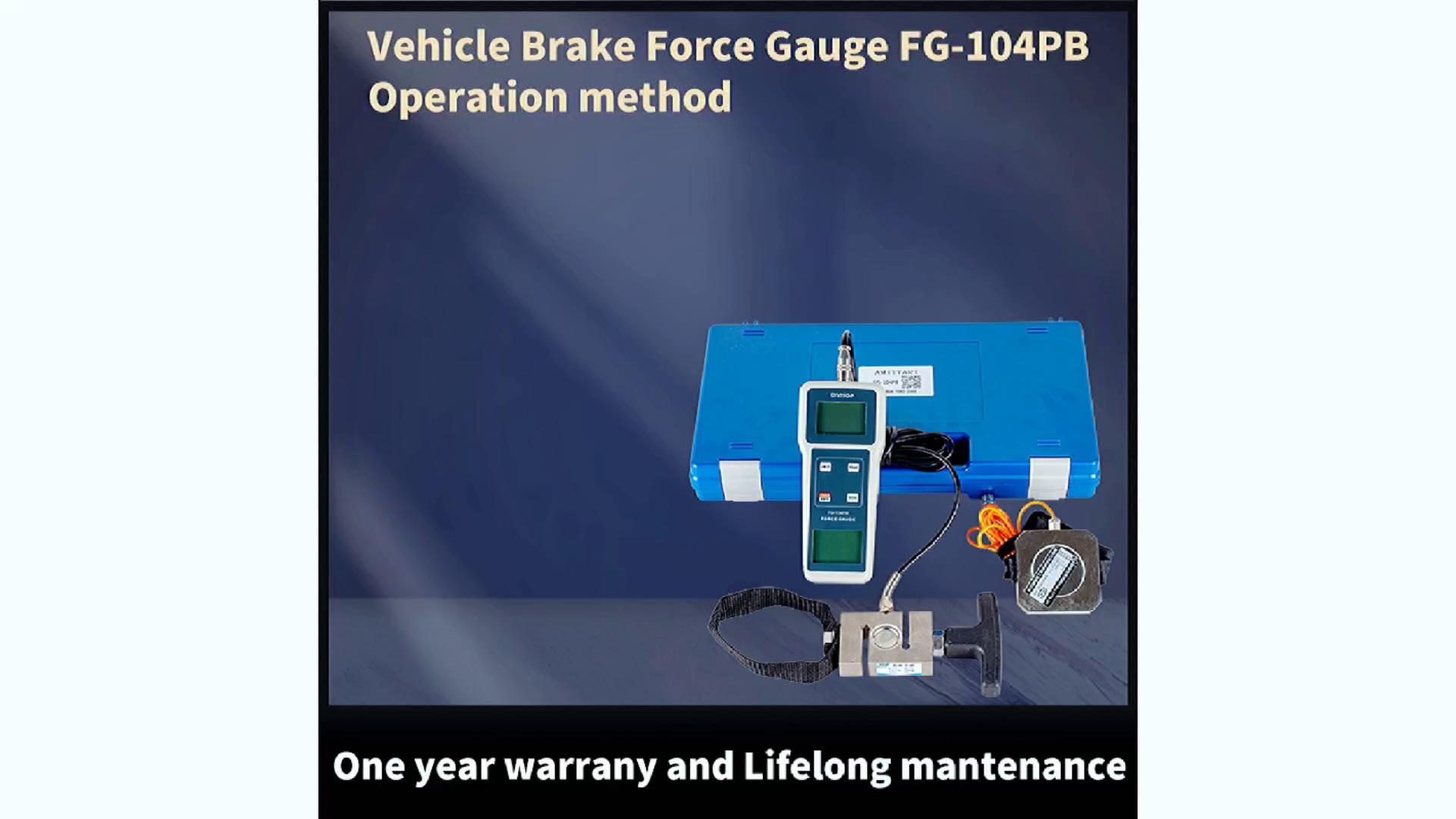

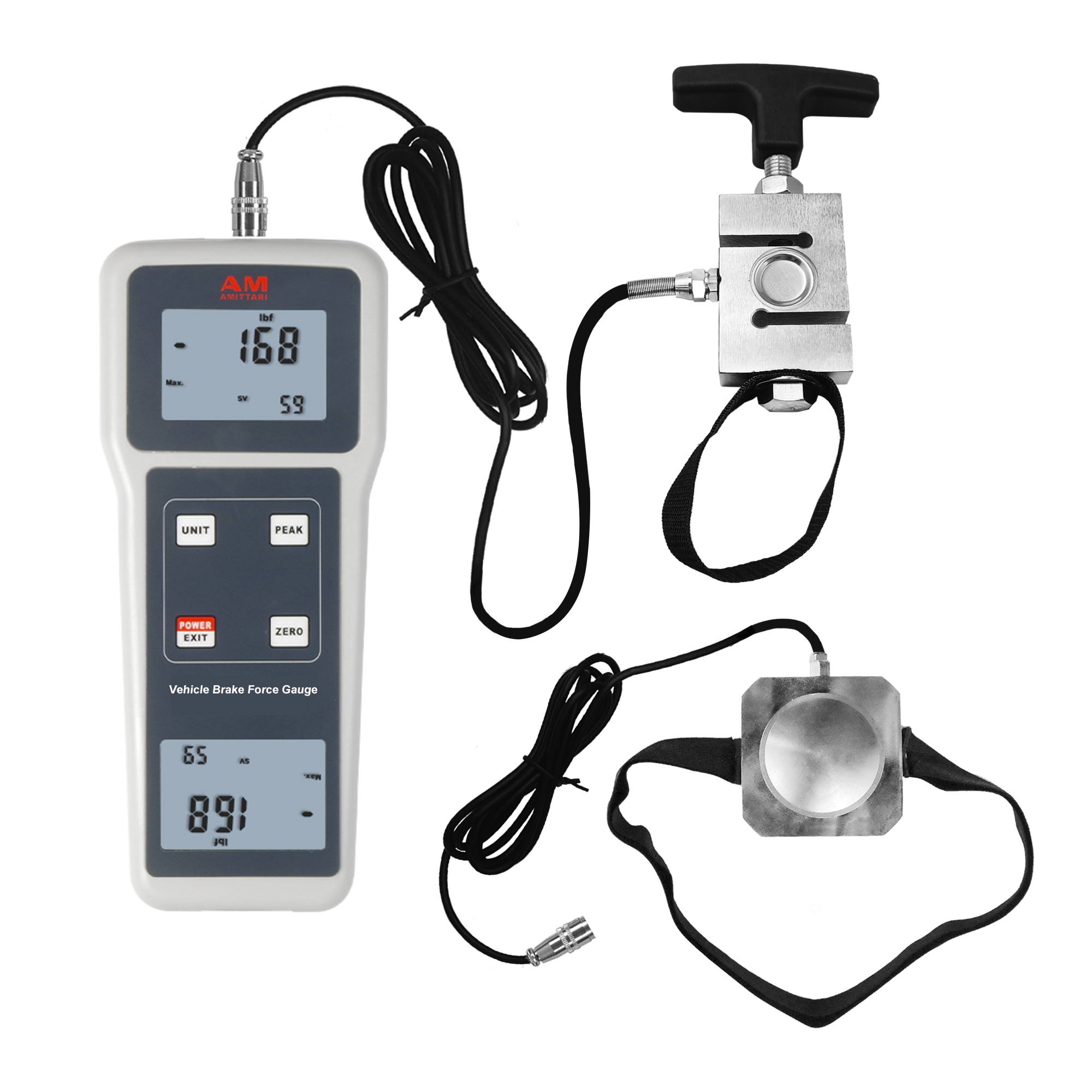

Product Description
Pedal force control force tester is used to measure the brake pedal force of various motor vehicles Value and parking brake force value of the test instrument, the whole design is easy to control, The instrument is automobile, agricultural machinery factory, automobile comprehensive performance testing,
scientific research Department, road traffic department, agricultural machinery safety supervision department, the ideal of the army Testing equipment and the ideal teaching equipment of automobile in colleges and universities.
Product Feature
*High accuracy and high resolution.
*Digital display with no guessing or errors.
*With 3 measurement unit for selection, N, kg, lb .
*With peak value hold function.
*Either alkaline battery Power supply or 5V DC power.
Product Parameters
| Mode | FG-104PB |
Force Rang | 100kgf,1000N,220Lbf |
Resolution | 0.01kgf,0.1N,0.1Lbf |
Accuracy
| ±0.5%FS ± 1Digit |
| Unit | kgf, N, Lbf |
|
| Measurement State | Peak Value Measurement, Real Time Measurement |
| Display | 2 Reversed 4 Digit LCD |
| Power Off | 10 Minutes Auto Power Off, Manual Power Off |
| Backlight | Backlight |
Safe Load | 150%FS (Buzzer Alarm Over 110%FS) |
Power Supply | 2x1.5 AA(UM-3) Battery or 5VDC Power Supply |
Operating | 0°C~40°C |
| Conditions | < 80% |
| Surrounding | No Vibration Source or Corrosive Medium Around |
Weight | 390G |
| Size | host machine:211mm*80mm*36mm |

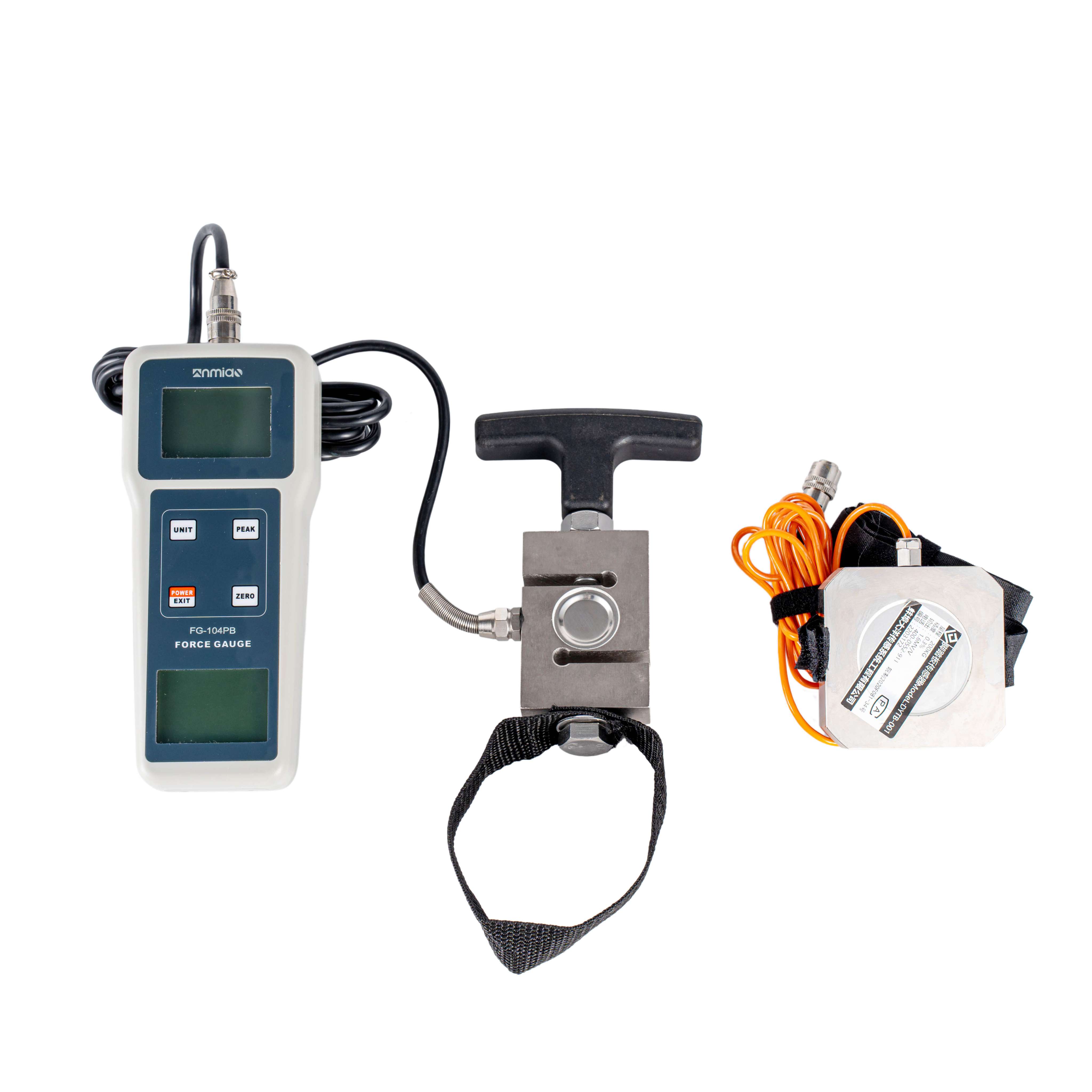

Product Accessories

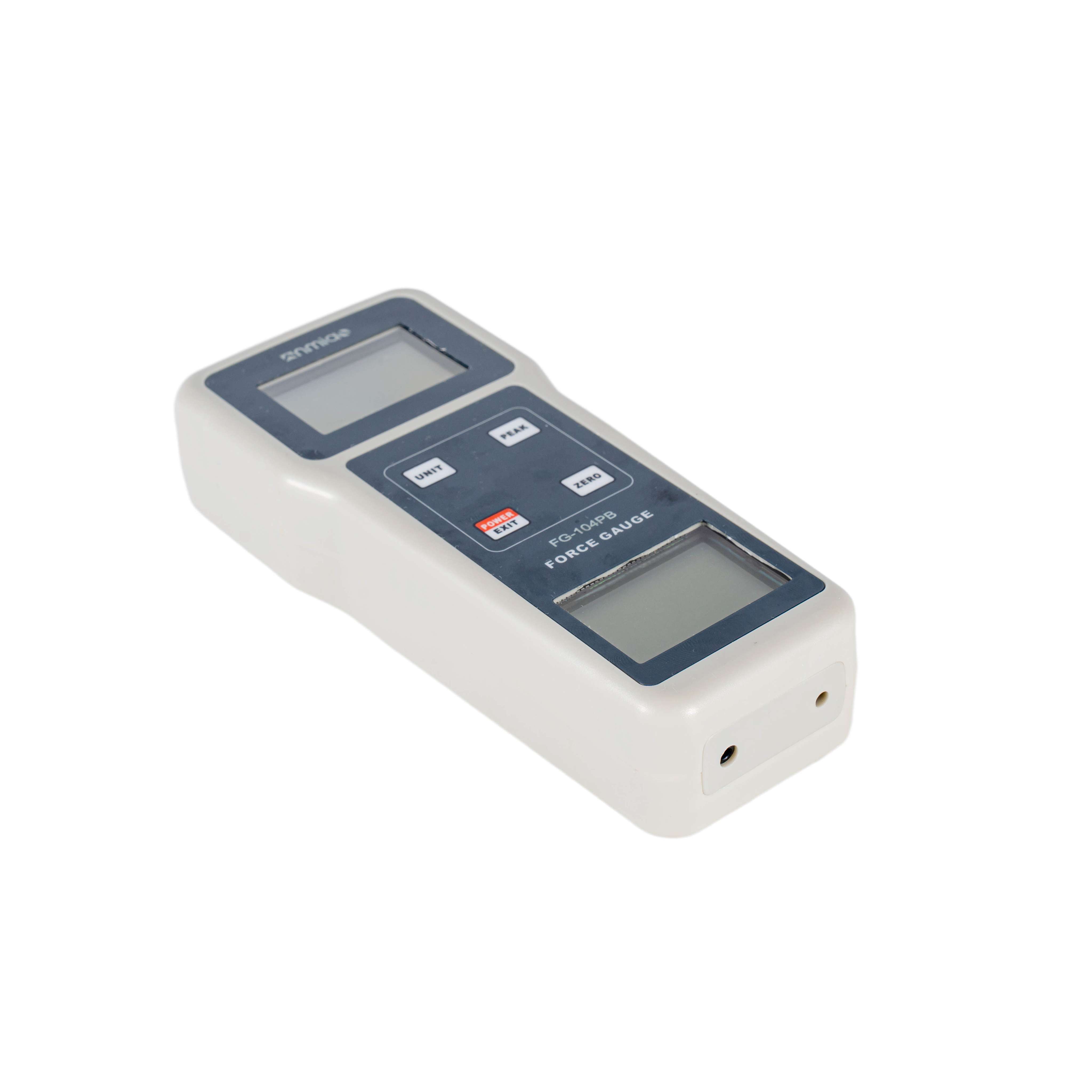

Standard accessories | The host |

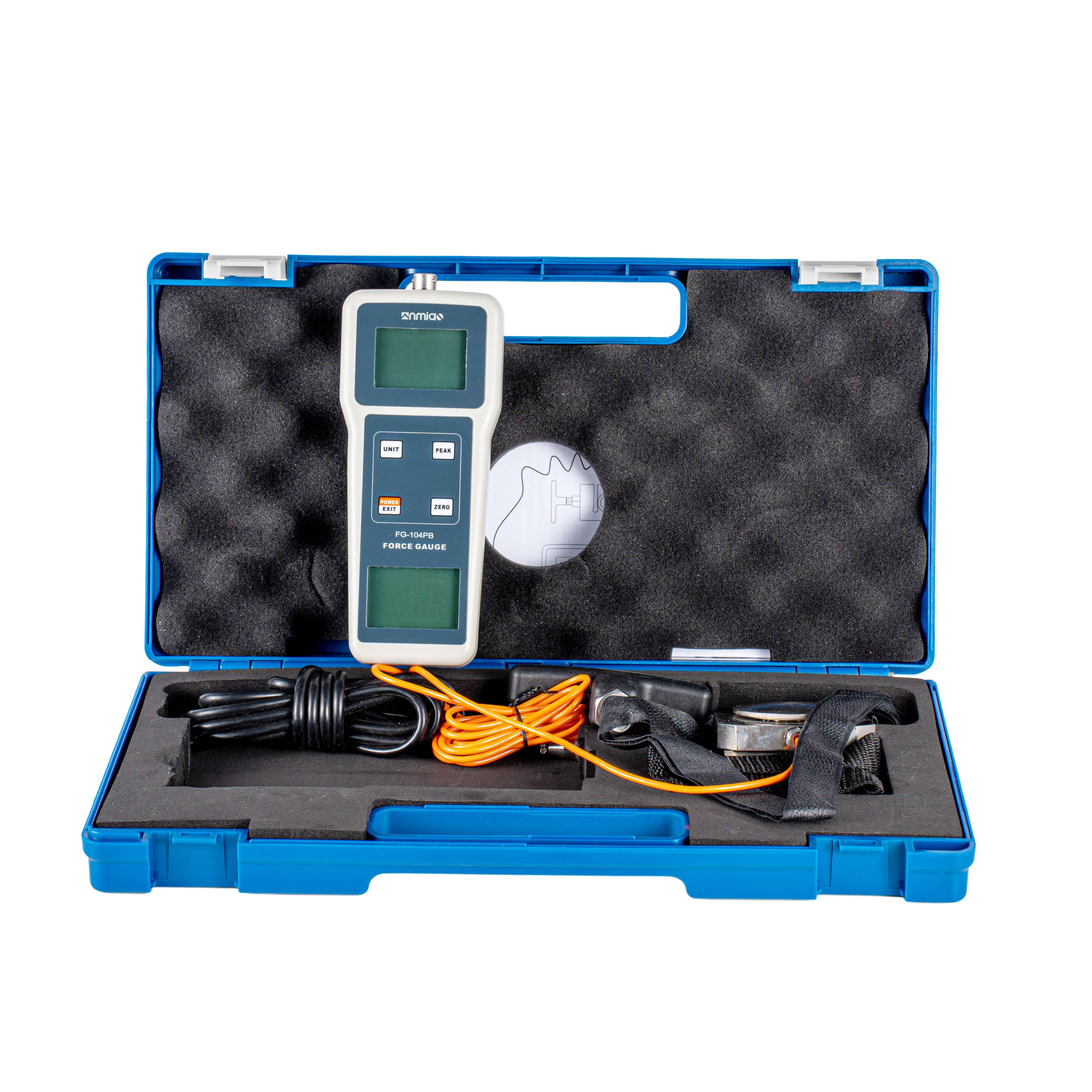

Carrying Case |

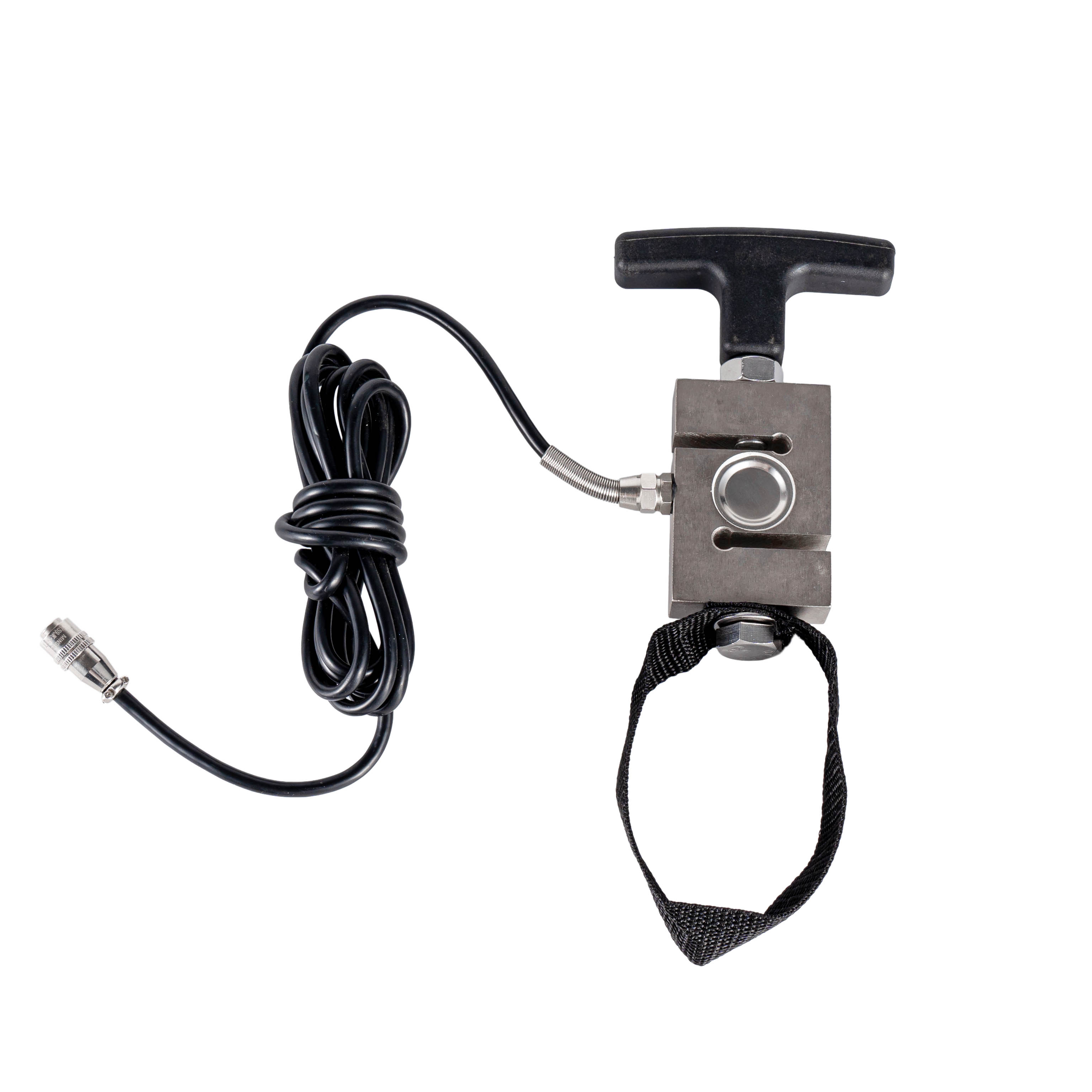

Handbrake force sensor |

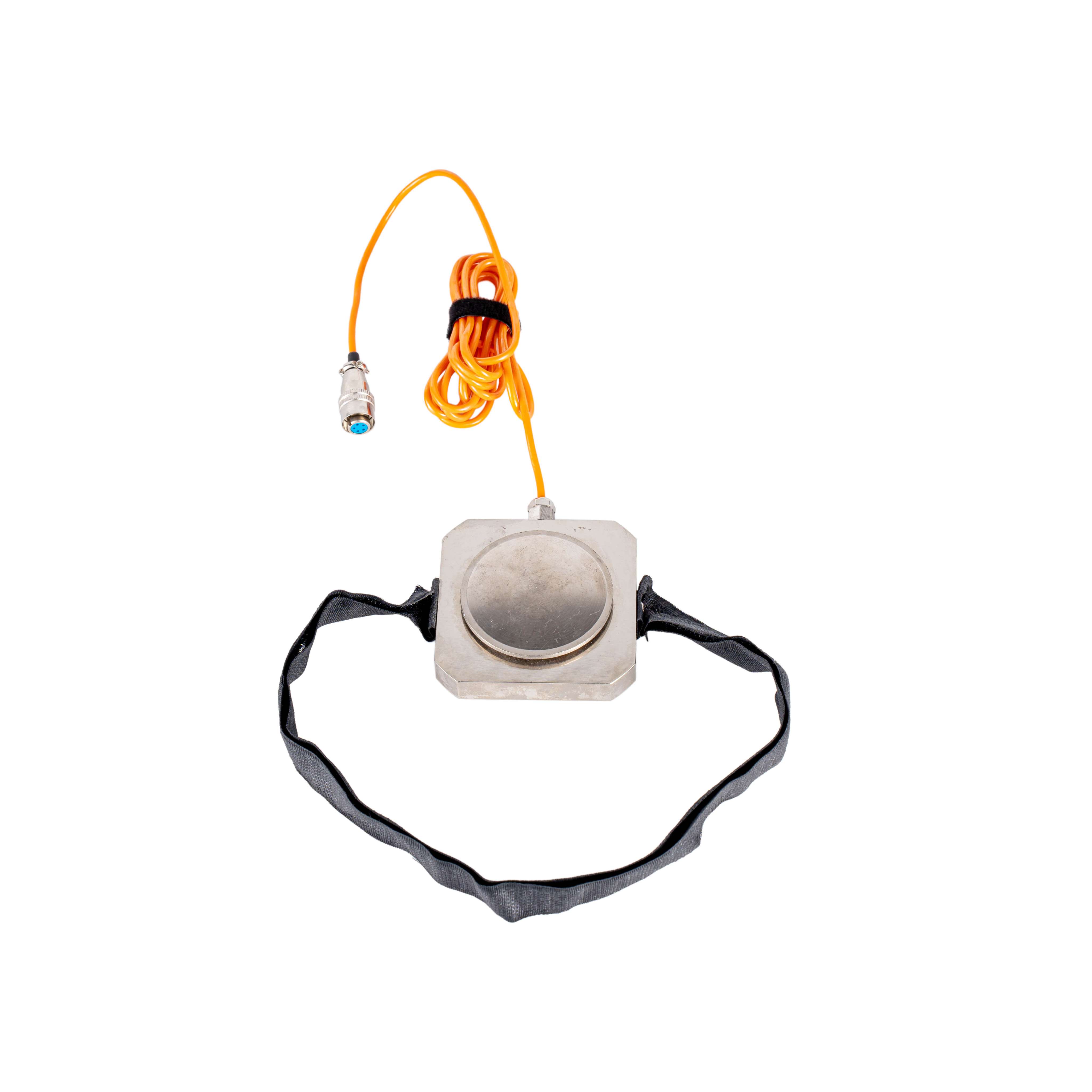

Pedal force transducer |
Optional accessories | power adapter |
Buying Guide
When you choose the model number of Amittari instrument, the default is standard delivery. If you need other optional accessories, please tell our customer -service worker.
Downloads
Vehicle Brake Force Gauge FG-104PB-Catalog
Vehicle Brake Force Gauge FG-104PB-Manual
