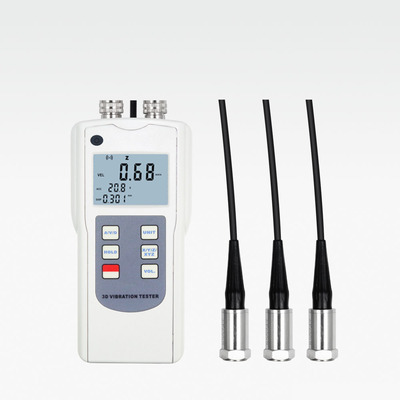

Product Description
The Vibration Tester can display the parameters of “Displacement”, “Velocity” and “Acceleration” simultaneously; Applied to the periodic motion measurements to detect moving mechanical imbalances and misaligned. Designed for on-site measuring various mechanical vibration, for quality control, running time and prior equipment maintenance data. Selection of high-performance accelerometers to achieve accurate, replicable measurement It has a bearing condition measurement function.
Product Feature
* Can display the parameters of “Displacement”, “Velocity” and “Acceleration” simultaneously.
* In accordance with ISO 2954, used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines.
* Specially designed for easy on site vibration measurement of all rotating machinery for quality control, commissioning, and predictive maintenance purposes.
* Individual high quality accelerometer for accurate and repeatable measurements.
* Wide frequency range (10Hz~10kHz) in acceleration mode.
* AC output socket for headphones and recording.
* Optional headphones for use as electronic stethoscope.
* Bearing condition monitoring function.
* Use USB data output with connection PC.
* Provide Bluetooth data output choice.
Product Parameters
Transducer
| Piezoelectric accelerometer |
Accuracy
| ±5%+2 digits
|
| Measurement Range | Displacement : 0.001-4.000 mm equivalent peak-peak / 0.04-160.0 mil
|
Velocity : 0.1-400.0 mm/s true RMS / 0.004-16.00 inch/s
|
| Acceleration : 0.1-400.0 m/s² equivalent peak / 0.3-1312 ft/s² / 0.0-40g |
Frequency Range
| Displacement : 10Hz. ~ 1kHz.
|
Velocity :10Hz. ~1kHz.
|
Acceleration: 10Hz. ~ 10kHz.
|
| Operating Conditions | Temperature : 0-50 ℃
|
Humidity : below 95% RH
|
Analogue Output
| AC output 0~2.0V peak full scale (load resistance: above 10k)
|
Power Supply
| 4x1.5vAAA (UM-4) Battery
|
Size
| 140x70x30mm
|
Weight
| 130g (Not including Batteries)
|
Product Accessories
Standard Accessories
| Main Unit
|
Magnetic suction seat |
Probe (cone) / Probe (spherical)
|
Portable box
|
| Brochures |
Piezoelectric sensor
|
Carrying Case
|
Operation Manual
|
Optional Accessories
| Headset |
USB data output |
RS-232 data output
|
Bluetooth™ data output
|
Catalog
Manual
Buying Guide
When you choose the model number of Amittari instrument, the default is standard delivery. If you need other optional accessories, please tell our customer -service worker.
The following three items are basic optional accessories choices
Standard Accessories+USB data output
Standard Accessories+Bluetooth data output
Bluetooth Accessories
Amittari instruments generally can be supplied with Bluetooth™ data output function ( except few instruments ) . As Bluetooth™ data output is included in optional accessories, not standard delivery,it needs to be indicated when choose.10 meters to 100 meters distance can be chosen.Please kindly contact with the customer-service worker if you need Bluetooth™ data output.
