Application
GLOSS (GLOSS) - measuring the percentage of the number of reflected light. Reflection fog shadow (HAZE) - due to bad coating pigment dispersion in the
microstructure of emulsion appearance, will happenthis optical effect known as
Features
* is suitable for the maintenance of the floor, surface cleaning, such as surface gloss measurement.
* stones, the glossiness of ceramic tile measurement, spray paint and other surface gloss measurement.
* paint, ink, paint coating, such as wax membrane and car body paint surface gloss measurement.
* the product design and production in line with international:ASTMD523，ASTMD1455，ASTMC346，ASTMC584，ASTMD2457， IS02813，DIN67530 ENIS07668，JISZ8741，MFT30064， PINPIT480， GB9754，GB/T13891 GB7706 and GB 8807
standard.Technical parameters meet the criteria of JJG 696-2002.
* plastic, paper and other surface gloss measurement.
* other non-metallic materials such as surface gloss measurement.
* can also show 200 Angle, Angle of 600 and 85. Angle measuring glossiness.
Product Parameters
| photometric units |
GU |
| measuring range | 0~2000 GU
|
accuracy
| ±1.5 (relative to the reference standard of JJG 696-2002) |
resolution
| 0.1GU, repeatability :±0.5GU, error of indication: less than ±1.2GU |
projection angle
| 20°, 60° and85° |
fog shadow units
| HU resolution± 0. 1 HU, repeatability ± 0. 2 HU,±1.5 HU reproducibility |
The measurement area
| 7 x14mm (ellipse)
|
numerical memory
| 56 groups |
Environment Temperature
| 0°C~40°C
|
| Relative Humidity | No more than 85% |
| Power Supply | 2x1.5V AAA (UM-4) |
| Size | 140mmx45mmx75mm |
| Weight | ±310g (Including Batteries) |
Download

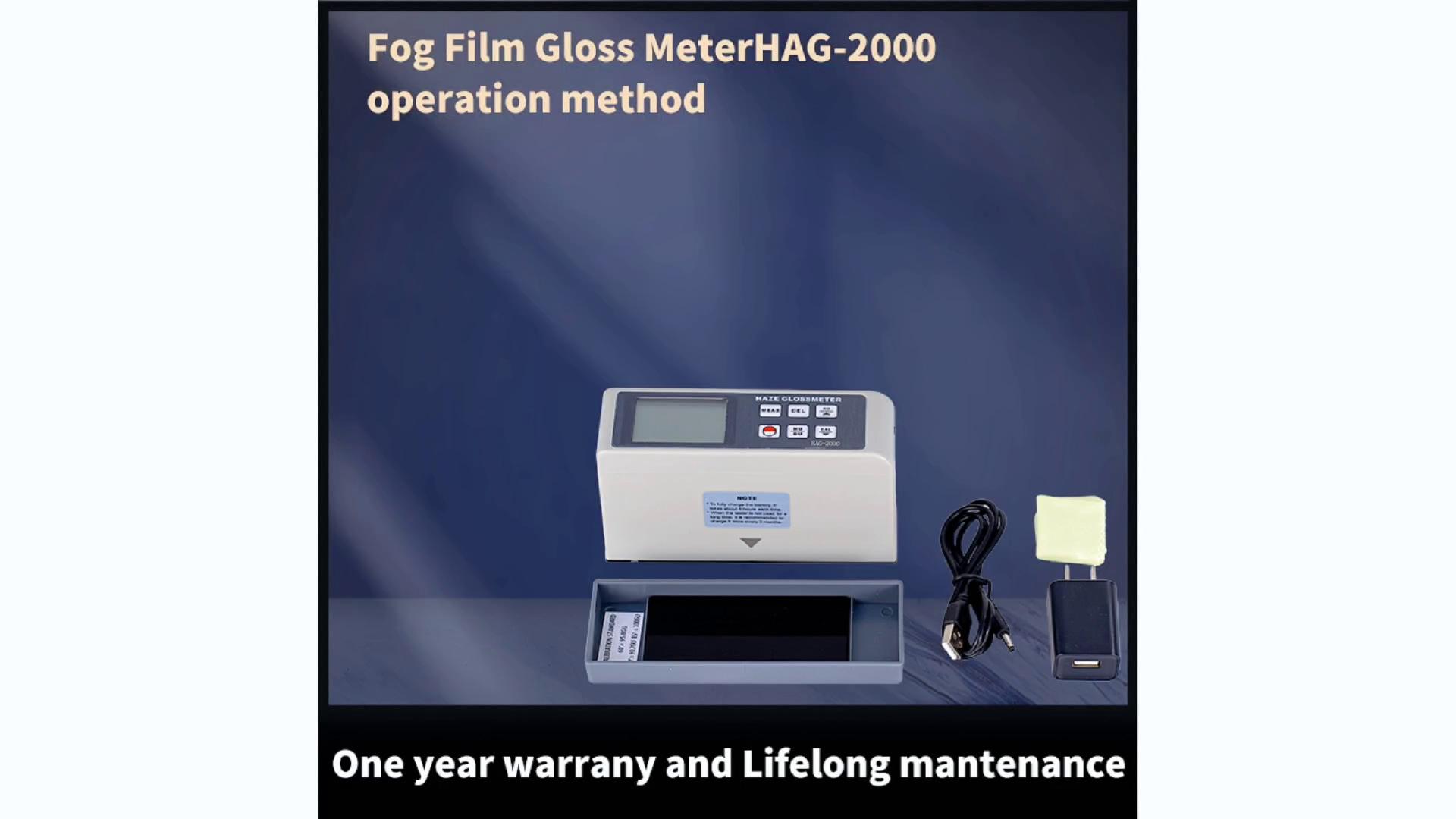

Fog Film Gloss MeterHAG-2000-CA
Fog Film Gloss MeterHAG-2000-MU
Buying Guide
When you choose the model number of Amittari instrument, the default is standard delivery. If you need other optional accessories, please tell our customer -service worker.
The following three items are basic optional accessories choices
Standard Accessories+USB data output
Standard Accessories+Bluetooth data output
Bluetooth Accessories
Amittari instruments generally can be supplied with Bluetooth data output function ( except few instruments ) . As Bluetooth data output is included in optional accessories, not standard delivery, it needs to be indicated when choose 10 meters to 100 meters distance can be chosen. Please kindly contact with the customer-service worker if you need Bluetooth data output.
