Product Description

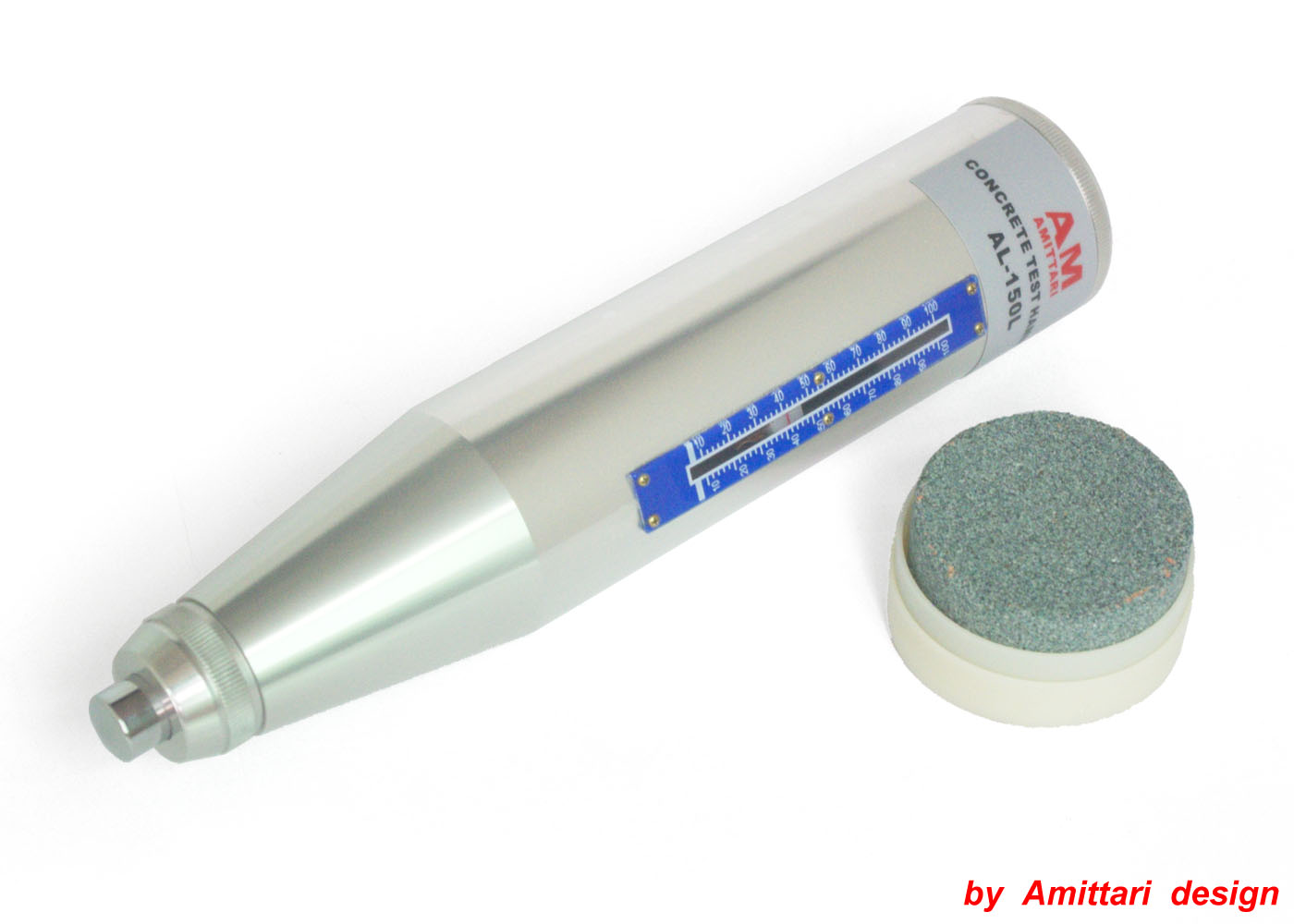

The concrete test hammer is a mechanical device used for performing rapid, non-destructive quality testing on
materials in accordance with the customer's specifications. In most cases, however, the material involved is
concrete. The device is to be used exclusively on the surfaces to be tested and on the testing anvil.
*Center guide adopts imported materials, high accuracy,resistance to wear and tear.
*Shell is made of super hard aluminum, avoid on-site damageequipment, prolong service life.
*Pointer block the external type spring coil structure,convenient for friction adjustment, ang caoguarantee pointer
shaft and pointer slider friction forceuniform, to ensure theaccuracy of the instrument.
Product Parameters
| Standard impact energy | 0.735J |
Strike length of flip hammer
| 75+0.3mm |
Friction of pointer slider
| 0.5+0.1N |
| Work length of flip tensioned spring | 61.5+0.3mm |
| Location of flip hammer's hook release | 100 at the scale mark |
| Sphere semidiameter at the end of the flip rod | 25士1mm |
| SIZE | 270x55x55mm |
| Weight | 1040 g |
| The rebound values calibrated on steel anvil | 74+2 |
Product Accessories
Standard Accessories
| Main Unit
|
Carrying Case
|
Operation Manual
|
Catalog download
Buying Guide
When you choose the model number of Amittari instrument, the default is standard delivery. If you need other optional accessories, please tell our customer -service worker.
The following three items are basic optional accessories choices
Standard Accessories+USB data output
Standard Accessories+Bluetooth data output
Bluetooth Accessories
Amittari instruments generally can be supplied with Bluetooth data output function ( except few instruments ) . As Bluetooth data output is included in optional accessories, not standard delivery,it needs to be indicated when choose 10 meters to 100 meters distance can be chosen.Please kindly contact with the customer-service worker if you need Bluetooth data output.
