Product Description

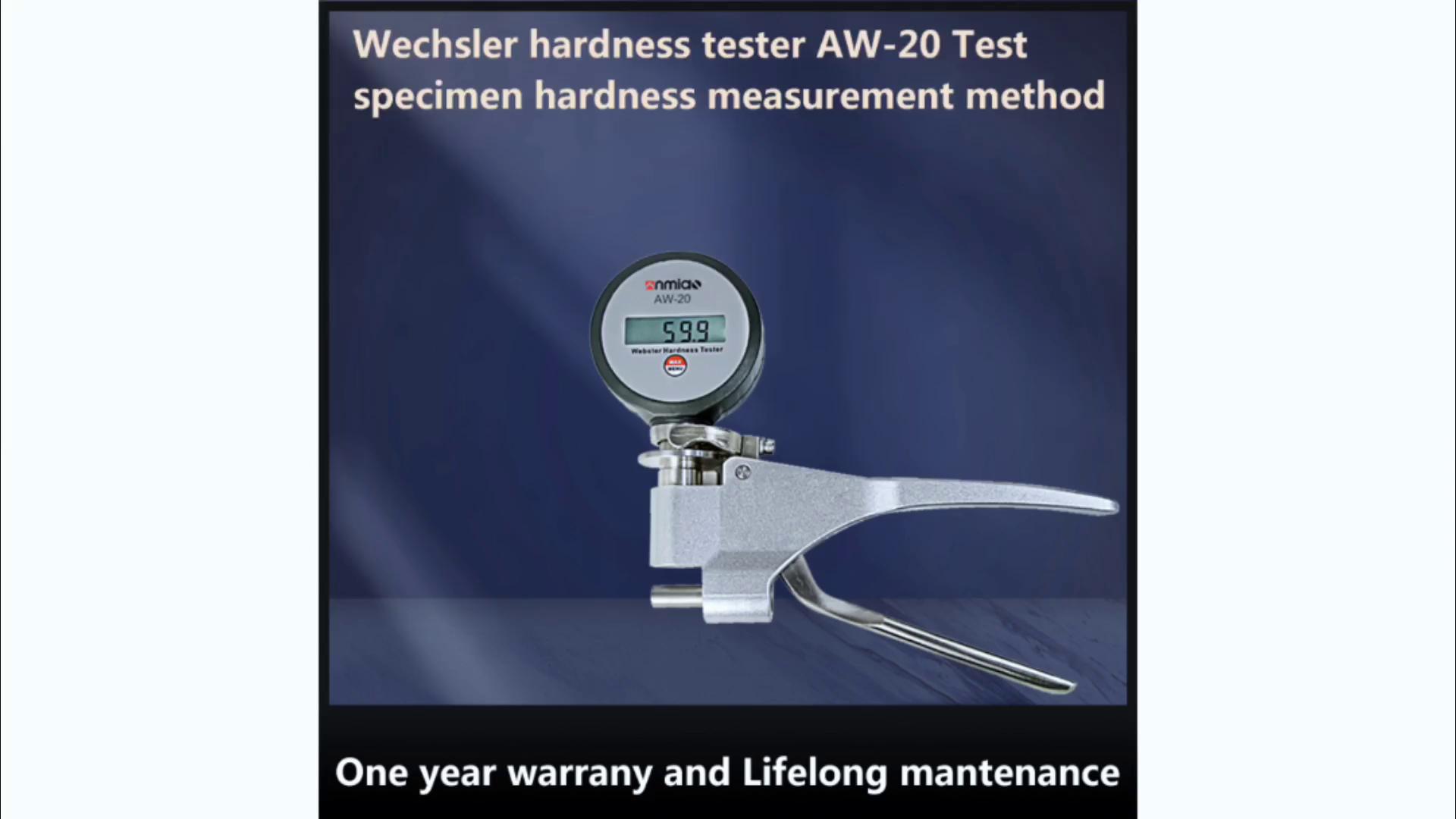

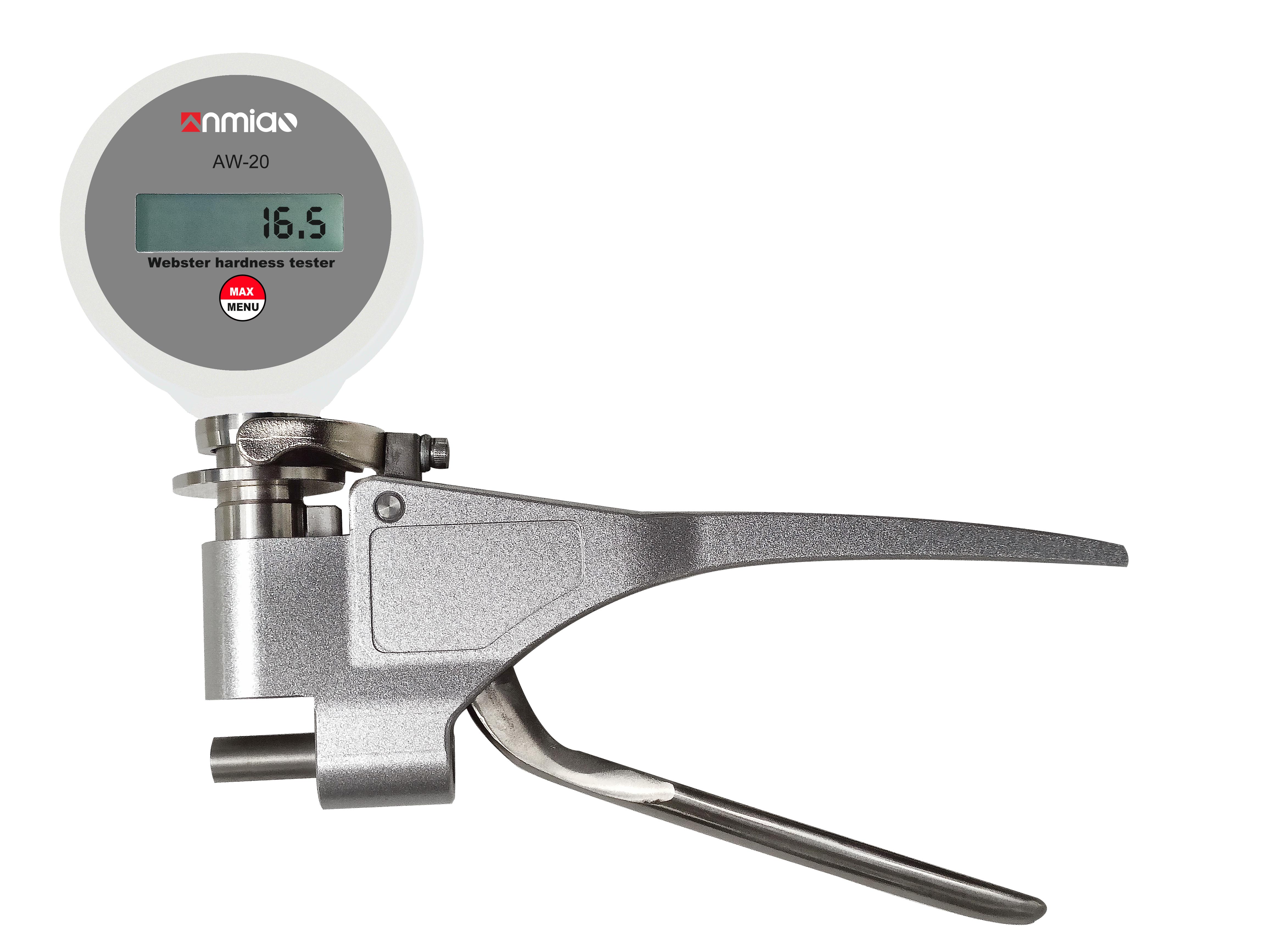

AW-20 series Wechsler hardness tester is an instrument that can quickly test the hardness of aluminum alloy in the field. Wechsler
hardness tester is easy to use,One card can, hardness value directly read. Used for rapid detection of aluminum alloy profiles,
pipes, plates, aluminum workpieces and other soft The hardness of the metal. It is especially suitable for fast and non-destructive
batch products at the production site, sales site or construction site Item by item inspection.
Product characteristics
Press needle: new material, new process manufacturing of press needle, high hardness, long life, good interchangeability.
Handle: forged material, surface anodized upper handle, beautiful, wear resistant, pollution resistant.
Hardness block: The standard hardness block is tested by the standard hardness machine.
High quality: fine parts processing, precision machine assembly, strict quality inspection.
Good stability: full degree point stability, correction point stability,
Product Parameters
| range | 0~20HW |
precision
| 0.5HW |
weight
| 625g |
| dimension | 220*160*30mm |
| battery | 2*1.5AAA |
| measuring range | |
Product Accessories
Standard Accessories
| Main Unit
Operation Manual
Standard Wechsler Spare presser Special wrench
Small screwdriver hardness block |
|
|
| Optional accessories | Spare presser Standard Wechsler hardness block |
Catalog download
Manual download
Buying Guide
When you choose the model number of Amittari instrument, the default is standard delivery. If you need other optional accessories, please tell our customer -service worker.
The following three items are basic optional accessories choices
Standard Accessories+USB data output
Standard Accessories+Bluetooth data output
Bluetooth Accessories
Amittari instruments generally can be supplied with Bluetooth data output function ( except few instruments ) . As Bluetooth data output is included in optional accessories, not standard delivery,it needs to be indicated when choose 10 meters to 100 meters distance can be chosen.Please kindly contact with the customer-service worker if you need Bluetooth data output.
