Product Feature

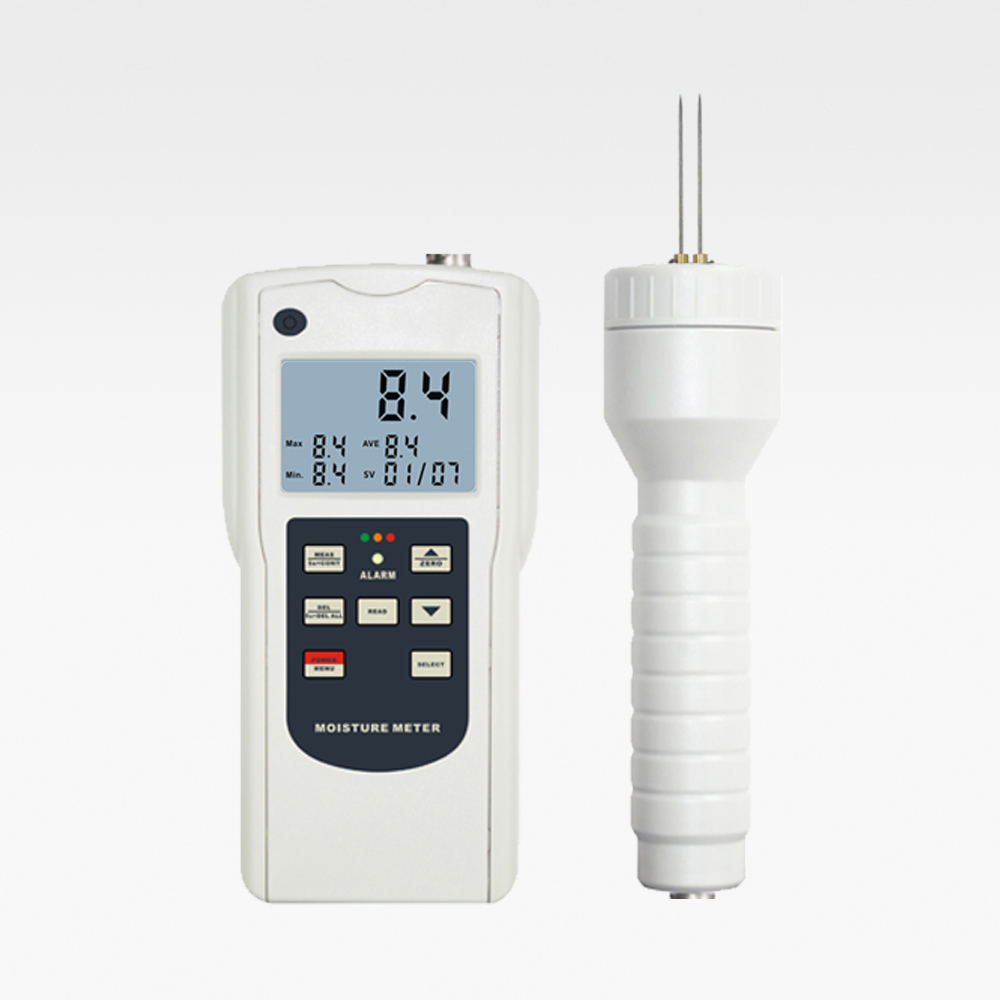

* Pin Type Cigarette Moisture Meter with boot automatic calibration function.
* Measure the moisture of cigarette by testing the conductivity between two pin probes.
* The selection of different measuring codes makes measurement results more accurate. there is a standard code cd00, also 4 kinds of code cd01, c d02, c d03, c d04, for t he user s’ self calibration according to the specific measured cigarette, in order to improve the accuracy of measurement .
* Digital display gives exact reading with no guessing or errors while a color coded light ( LED) indicates the moisture condition of the material. This combined presentation of moisture measurement helps the user to map the extent of problems and monitor changes in condition precisely and reliably.
* Dedicated to the cigarette moisture testing. Sensor pins are suitable for cigarettes of different size without a djustments of the pin distance, convenient for the users.
* Can store 120 sets of data, realize of statistic function by testing the average, maximum and minimum value.
* Use USB/RS-232 data output to connect with PC.
* Provide Bluetooth data output choice.
Product Parameters
Sensor Type | Pin |
Range | 0~80% |
Accuracy | ±(0.5%n+0.2) |
Resolution | 0.1 |
Display | LCD |
LED Indicator
| Green LED represents a safe,air-dry state |
Yellow LED repeesents a borderline state |
Red LED represents a damp state |
Calibration | Automatic |
Battery Indicator | Low Battery Indicator |
Operating Conditions | Temperature | 0~50ºC |
Humidity | <90%RH |
Power Supply | 4X1.5V AAA(UM-4)Battery |
Dimensions | Main Unit | 140x70x32 mm |
Sensor | 180x44x44 mm |
Length of pin | 33mm |
Diameter of pin | 0.7mm |
Distance Between 2 pins | 3.5mm |
Weight | 220g(Not Including Batteries) |
Standard Accessories | Main Unit |
Pin Sensor |
Carrying Case(B04) |
Operation Manual |
Optional Accessories | USB Data Cable with Software |
Bluetooth Data Adapter with Software |
manual download
Buying Guide
When you choose the model number of Amittari instrument, the default is standard delivery. If you need other optional accessories, please tell our customer -service worker.
The following three items are basic optional accessories choices
Standard Accessories+USB data output
Standard Accessories+Bluetooth data output
Bluetooth Accessories
Amittari instruments generally can be supplied with Bluetooth data output function ( except few instruments ) . As Bluetooth data output is included in optional accessories, not standard delivery,it needs to be indicated when choose 10 meters to 100 meters distance can be chosen.Please kindly contact with the customer-service worker if you need Bluetooth data output.
