Product Description
The product has been corrected by strict spectrum and Anglecharacteristics, stable performance and strong applicability.The instrument is suitable for the measurement of ultravioletirradiance in sterilization, lithography, UV sterilization lamp,mosquito killing lamp water treatment, mosquito killing lamp,shoe factory, leather factory medical treatment, breeding and other fields.
Product Feature
*. The spectrum and Angle characteristics are strictly corrected, and the stability is good
*. Microcomputer technology, low power consumption, high precision
*. Digital LCD display, backlight operation
*. The number has a Hold function, Hold key, lock data, easy to record and compare
*. The instrument comes with USB cable can be directly connected to the computer USB interface (optional)
Product Parameters

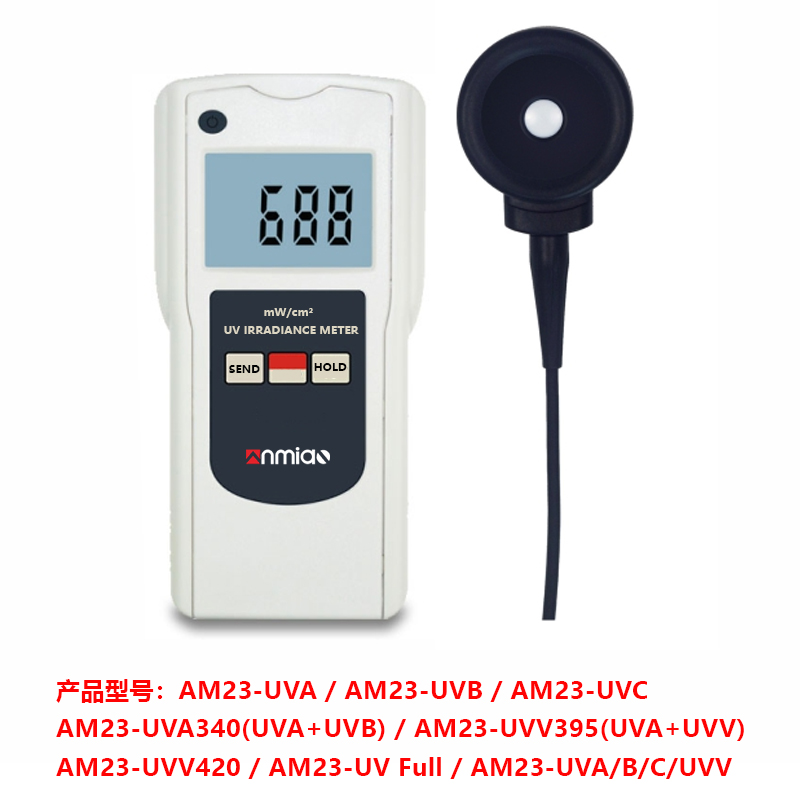

| Model | AM23-UVA | AM23-UVB | AM23-UVC | AM23-UVA340 (UVA+UVB) | AM23-UVV395 (UVA+UVV) | AM23-UVV420 | AM23-UV Full | AM23-UVA/B/ C/UVV |
| P e a k | 365±5nm (Bottom width315-400) | 297±5nm (Bottom width280-315) | 254±5nm (Bottom width200-280) | 340(290-390) | 395(340-420) | 420(395-445) | 365(200-400) | Ultraviolet multiband(315-400)(280-315)(200-280)(340-420) |
| Display | LED |
| screenPowermeasuring range | 2.000mW/20.00mW/200.0mW/cm² |
| Measurementaccuracy | ±5 % |
| Resolution | 0.1 mW/cm² |
| Standard line | the line length is 1 meter, and the extension must be customized |
| Sampling time | ≈ 0.5 seconds |
| Temperature | 0-50℃(32-122℉) |
| Humidity | Less than 80%RH |
| Weight | ≈200g(including battery) |
| Size | Host: 140x72x34 mm Sensor:59xφ58mm |

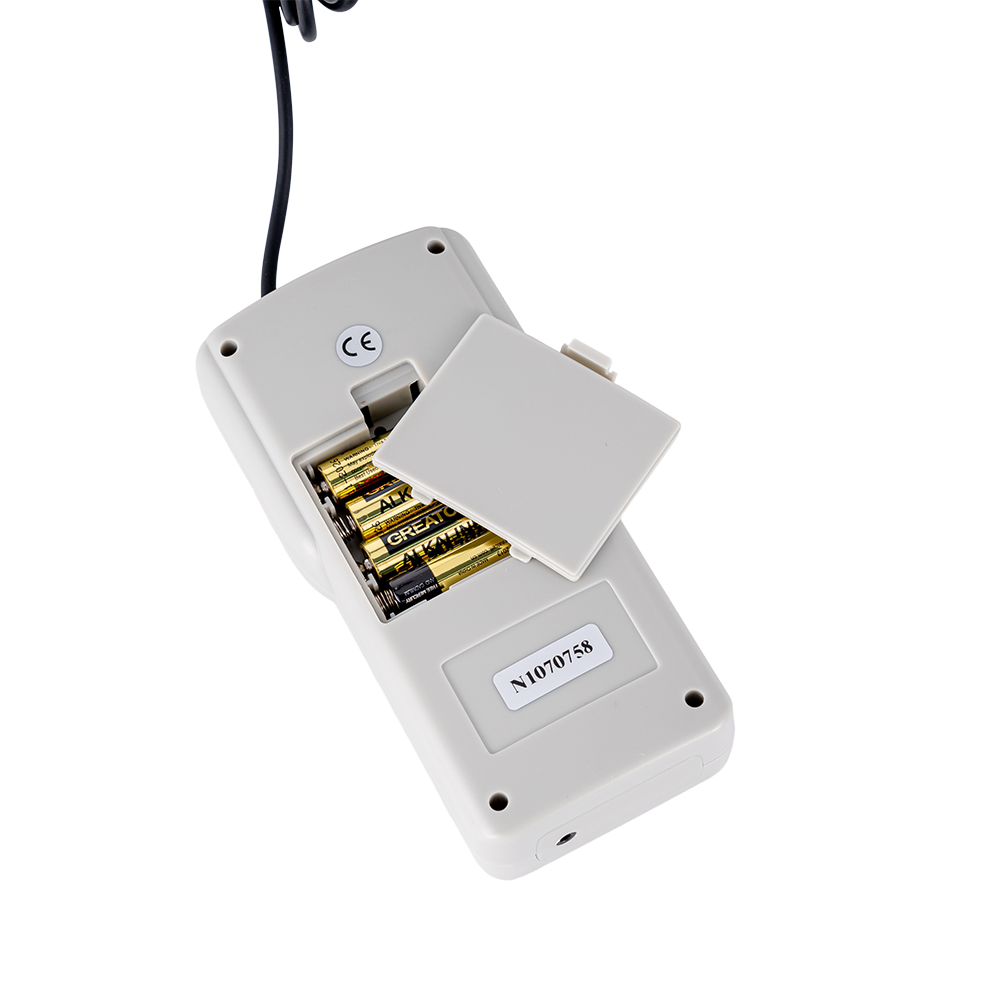

| Power Supply | 1.5AAA*4 batteries |

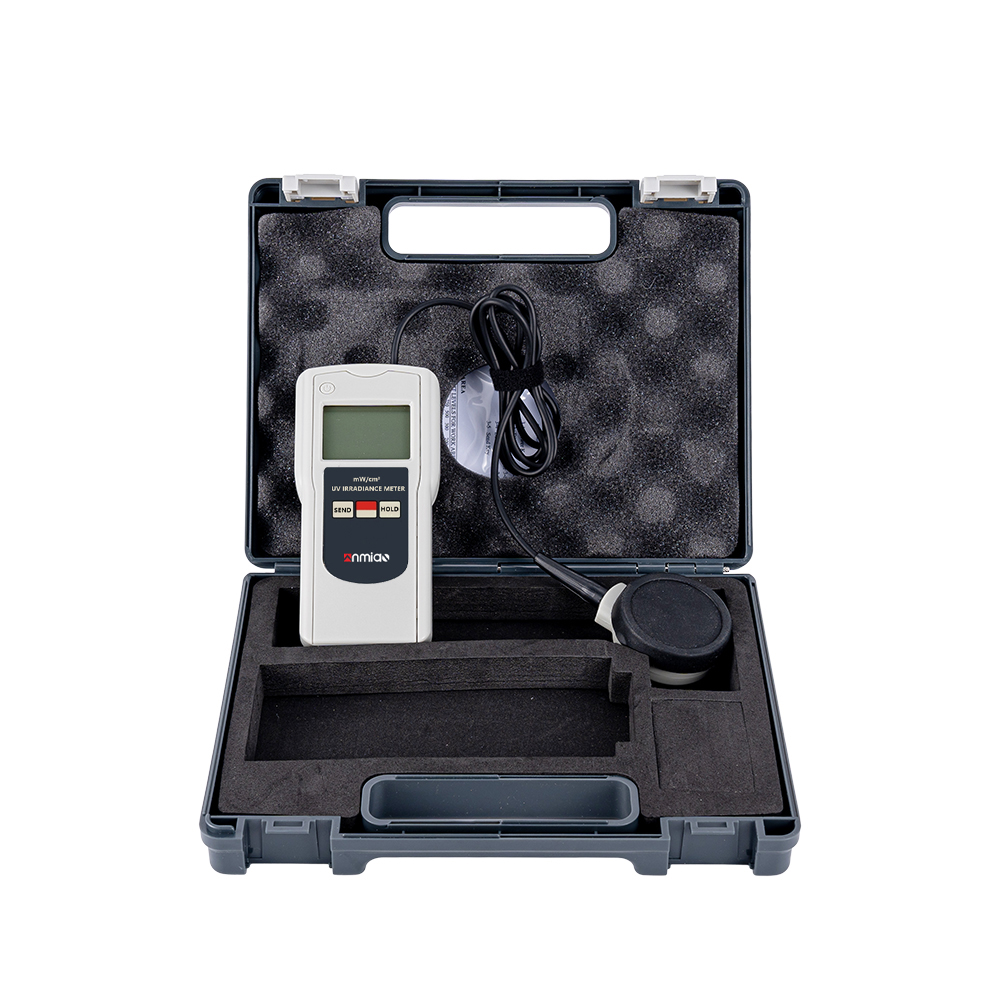

| Standard | Host, instruction manual, portable case |
| Optional | Bluetooth adapter and software,RS-232 |
download
catalog
manual
Buying Guide
When you choose the model number of Amittari instrument, the default is standard delivery. If you need other optional accessories, please tell our customer -service worker.
The following three items are basic optional accessories choices
Standard Accessories+USB data output
Standard Accessories+Bluetooth data output
Bluetooth Accessories
Amittari instruments generally can be supplied with Bluetooth data output function ( except few instruments ) . As Bluetooth data output is included in optional accessories, not standard delivery,it needs to be indicated when choose 10 meters to 100 meters distance can be chosen.Please kindly contact with the customer-service worker if you need Bluetooth data output.
