Product Description
Universal type penetrometer is based on the geotechnical experiment: the penetration of soil and the dry density of soil, the relationship between the relationship between the penetration and water content of soil and the relationship
between soil water volume and compactness, through a lot of penetration and ring cutting parallel contrast test And establish
the regression equation, the rate of penetration resistance between the dry density and the related data sheet. By measuring the penetration resistance and looking up the table, the dry density can be quickly obtained, and then the compaction
coefficient can be quickly calculated. Two, main technical parameters
Product Feature
* It has no radiation, nuclear contamination, and is cheap, small and easy to carry in the field.
* It is used in domestic industrial and civil construction, highway, railway, road and bridge, municipal drainage, oil pipeline, water conservancy, dam construction, dike, irrigation canal, reservoir construction, airport runway engineering.
* Penetration method a group of tests up to 15-20 minutes, high efficiency, fast, productivity liberation.
Product Parameters
Measuring range | 0kg-100kg (0N-1000N) |
Test depth | 0cm-30cm |
| Material tested | all kinds of backfill soil, clay, sand and mixed soil after rolling |
Application environment | highway, railway, reservoir, dike, dam and civil building, etc |

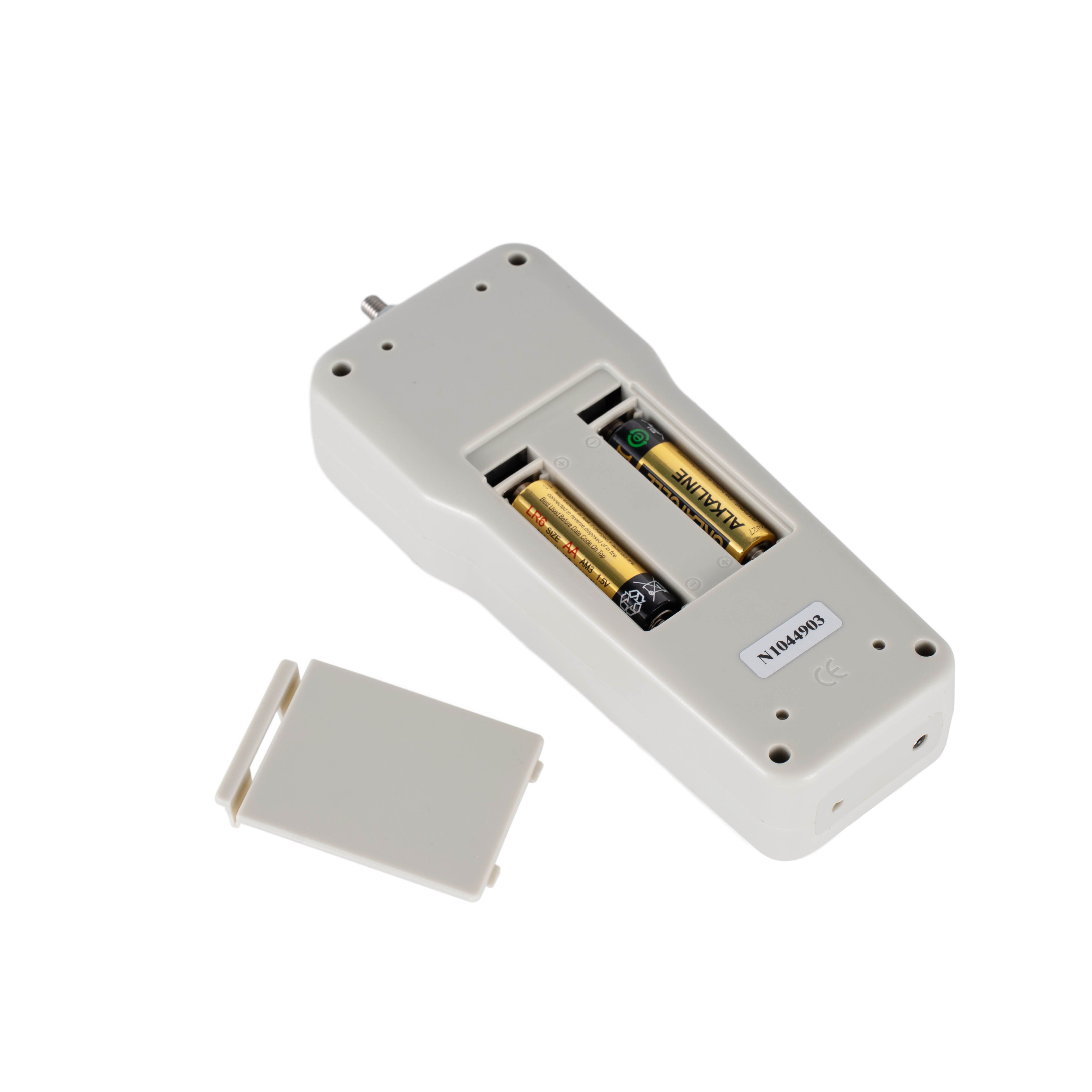

Power | 2 AA batteries(5 V dc matching) |
Accuracy of the test | ≤0.25% |
shutdown mode | Close automatically or manually shut down 10 minutes |
Download
catalog
manual
Buying Guide
When you choose the model number of Amittari instrument, the default is standard delivery. If you need other optional accessories, please tell our customer -service worker.
The following three items are basic optional accessories choices
Standard Accessories+USB data output
Standard Accessories+Bluetooth data output
Bluetooth Accessories
Amittari instruments generally can be supplied with Bluetooth data output function ( except few instruments ) . As Bluetooth data output is included in optional accessories, not standard delivery, it needs to be indicated when choose 10 meters to 100 meters distance can be chosen. Please kindly contact with the customer-service worker if you need Bluetooth data output.
