Product Introduction:

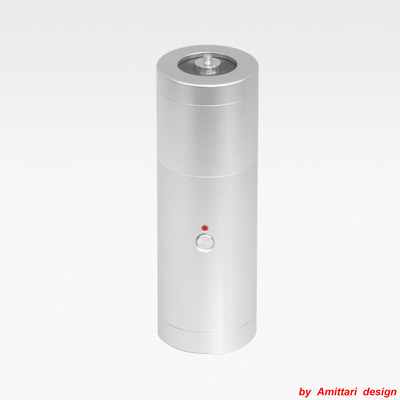

The Vibration Calibrator is a small, self-contained handheld shaker designed for quick and easy checking of accelerometers, vibration monitoring systems and recording systems. Providing a known and controlled RMS vibration for verification of accelerometers weighing up to 150g.
Features:
*Operates at 159.2 Hz.
*10 mm/s RMS velocity output.
*Drives vibration sensors up to 150g.
*CE compliant.
Specifications
Operating Frequency | 159.2Hz±0.5% |
Acceleration Output | 14.14m/s²(Peak)±3% |
Velocity Outout | 10mm/s(RMS)±3% |
Displacement Output | 28um(Peak-Peak)±4% |
Transverse Output | <5% |
Distortion | <3% |
Maximum Losd | 150 g |
Ramp-Up Time | < 3 Seconds |
Operating Conditions | Temp: -10°C~40°C Humidity: <85%RH |
Battery Supply | 4x1.5V AA (UM-3) battery |
Size (Diamter x Height) | 56 mm x 200 mm |
Weight (with batteries) | 960g |
